Kitagawa Corporation.
Kitagawa Grease nipple Chuck Parts
Manufacturer: Kitagawa Corporation.
Model: Grease nipple

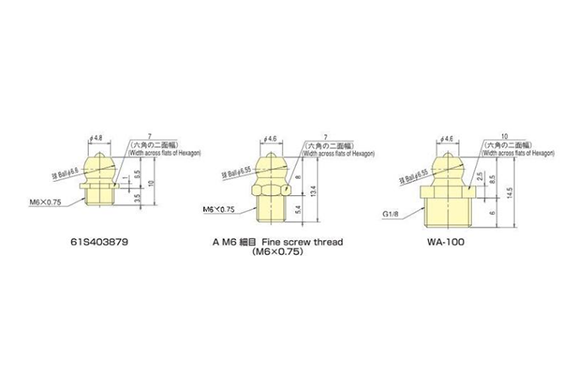

Grease nipple details
| Model | Counterbore dia. | Grease nipple type (DWG No.) |
| BR06/BRT06 | Ø15 | 61S403879 |
| BR08/BRT08 | Ø15 | AM68 Fine screw thread |
| BR1O/BRT1O | Ø15 | AM6 Fine screw thread |
| BR12/BRT12 | Ø15 | AM6 Fine screw thread |
| B-204/BT204 | Ø12 | 61S403879 |
| B-205/BT205 | Ø12 | 61S403879 |
| B-206/BT206 | Ø15 | AM6I8S Fne scre-w thread |
| B-208/BT208 | Ø15 | AM618S Fine screw thread |
| B-210/BT210 | Ø15 | AM6 Fne screw thread |
| B-212/BT212 | Ø15 | AM6 Fine screw thread |
| B-215 | Ø15 | AM6 Fine screw thread |
| B series | Ø15 | AM6 Fine screw thread |
| BB200 series | Ø15 | 61S403879 |
| BS306 | Ø15 | 61S403879 |
| BS308 | Ø15 | AM6 Fne screw thread |
| BS310 | Ø15 | AM6 Fine screw thread |
| BL/BLT series | Ø15 | AM6 Fine screw thread |
| H0H-206 | Ø15(Body)Ø15(Lever) | 61S403879 |
| H0H-208 | Ø15(Body) Ø17(Lever) | 61S403879.A M6 |
| HOH-1OK | Ø15(Body) Ø17(Lever) | AM6 Fne screw thread |
| H0H-12K | Ø20(Body) Ø19( Lever) | AM6 Fine screw thread |
| H0H-15K | Ø15(Body)Ø21(Lever) | AM6 Fine screw thread |
| QB 306 | Ø15 | 61S403879 |
| QB 308 | Ø15 | AM6 Fne screw thread |
| QB310 | Ø15 | AM6 Fine screw thread |
| QB312 | Ø15 | AM6 Fine screw thread |
| N-04 | Ø15 | AM6 Fne screw thread |
| N-05 | Ø15 | AM6 Fine screw thread |
| N-06 | Ø15 | AM6 Fine screw thread |
| N-08 | Ø15 | AM6 Fne screw thread |
| N-10 | Ø15 | AM6 Fine screw thread |
| N-12 | Ø15 | AM6 Fne screw thread |
| N-15 | Ø15 | AM6 Fine screw thread |
| N-18 | Ø15 | AM6 Fine screw thread |
| N-21 | Ø15 | WA-100 |
| N-24 | Ø15 | WA-100 |
| NL04 | Ø15 | AM6 Fne screw thread |
| NL06 | Ø15 | AM6 Fine screw thread |
| NL08 | Ø15 | AM6 Fne screw thread |
| NL10 | Ø15 | AM6 Fine screw thread |
| NL12 | Ø15 | AM6 Fine screw thread |
| NL18 | Ø15 | WA-100 |
| ML/MLT/MLV series | Ø15 | AM6 Fne screw thread |
| NT series | Ø15 | AM6 Fine screw thread |
| NLT series | Ø15 | AM6 Fine screw thread |
| HW-08 | Ø24 | AM6 Fne screw thread |
| HW-10 | Ø14 | AM6 Fne screw thread |
| HW-12 | Ø14 | AM6 Fine screw thread |
| HW-15 | Ø17 | AM6 Fine screw thread |
| Model | Counterbore dia. | Grease nipple type (DWG No.) |
| UVE-K series | Ø12 | AM6 Fine screw thread |
| UB series | Ø15 | WA-100 |
| UBR series | Ø15 | WA-100 |
| HRS08 | Ø15 | AM6£§ Fine screw thread |
| DLR08 | Ø15 | 61S403879 |
| DL206 | Ø15 | 61S403879 |
| DL208 | Ø15 | AM6 Fine screw thread |
| DL210 | Ø15 | AM6 Fine screw thread |
| DL212 | Ø15 | AM6 Fine screw thread |
| PW/PWT series | Ø15 | AM6 Fine screw thread |
| PUB series | Ø15 | AM6 Fine screw thread |
| PU203 | Ø12 | AM6 Fine screw thread |
| PU204 | Ø15 | AM6 Fine screw thread |
| PU205 | Ø15 | AM6 Fine screw thread |
| PU206 | Ø15 | AM6 Fine screw thread |
| PU208 | Ø15 | AM6 Fine screw thread |
| PU210 | Ø15 | AM6 Fine screw thread |
| PU212 | Ø15 | AM6 Fine screw thread |
| PUE series | Ø15 | AM6 Fine screw thread |
| LU series | Ø15 | AM6 Fine screw thread |
| FGT05/FG05 | Ø12 | AM6 Fine screw thread |
| FGT06/FG06 | Ø15(Body) Ø12(Lever) | AM6 Fine screw thread |
| FGT08/FG08 | Ø15 | AM6 Fine screw thread |
| FGT10/FG10 | Ø15 | AM6 Fine screw thread |
| FGT12/FG12 | Ø15 | AM6 Fine screw thread |
| FG-V series | Ø15( Plunger) | AM6 Fine screw thread |
| FG-L series | Ø15( Plunger) | 61S403879 |
| FG52M | Ø15( Plunger) | 61S403879 |
| FG-Q series | Ø14(lunger) | AM6 Fine screw thread |
| JN/JN-T series | Ø15 | 61S403879 |
| JN-RA series | Ø15 | 61S403879 |
| JT series | Ø15 | 61S403879 |
| JS series | Ø15 | 61S403879 |
| AS04 | Ø15 | 61S403879 |
| AS06 | Ø15 | AM6 Fine screw thread |
| ASOS | Ø15 | AM6 Fine screw thread |
| AS10 | Ø15 | AM6 Fine screw thread |
| AT04 | Ø15 | 61S403879 |
| AT06 | Ø15 | AM6 Fine screw thread |
| ATOS | Ø15 | AM6 Fine screw thread |
| AT10 | Ø15 | AM6 Fine screw thread |
| PLS series | Ø15 | AM6 Fine screw thread |
| JM200 | Ø15 | AM6 Fine screw thread |
Lubrication oil is applied to KPC series and SC series instead of Chuck Grease.
