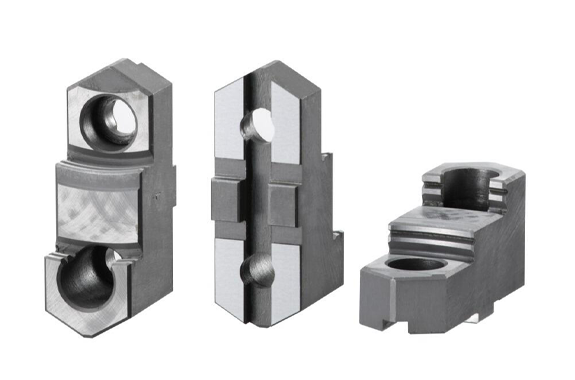

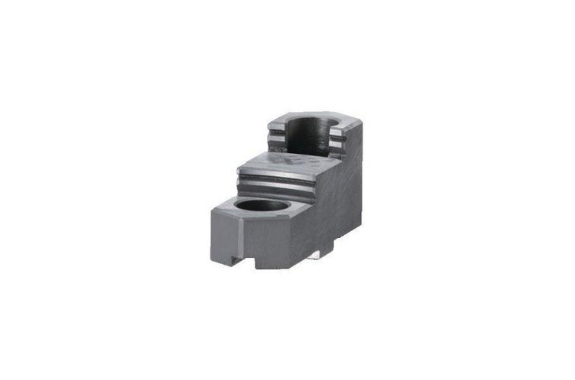

Kitagawa HBS series Chuck Parts
Manufacturer: Kitagawa Corporation.
Model: HBS series
Feature:
Description of Model HBS06C
“C” = Chuck type
06 = Chuck size
Indicates hard jaws for scroll chuck
Combination Table for Hard Jaws
| Hard Jaw Type | Adaptive Chuck Model |
|---|---|
| HBS06C | JN06T, JN06RA5 |
| HBS07C | JN07T, JN07RA5, JN08RA6 |
| HBS09C | JN09T, JN09RA6 |
| HBS10C | JN10T, JN10RA6 |
| HBS12C | JN12T, JN12RA6 (8-inch) |

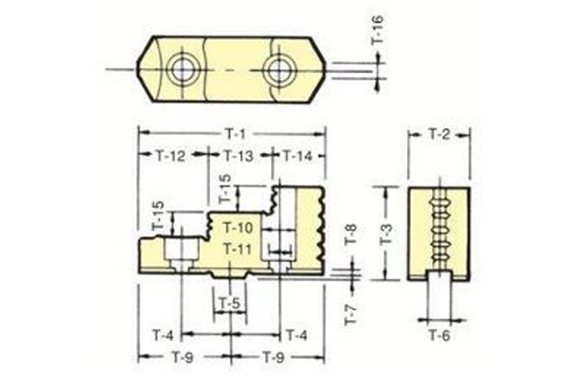

Dimensions
| TYPE | Chuck size | T-1 | T-2 | T-3 | T-4 | T-5 | T-6 | T-7 | T-8 | T-9 | T-10 | T-11 | T-12 | T-13 | T-14 | T-15 | T-16 | Mounting bolt |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HBS06C | 6 | 6 | 28 | 27.96 | 19.05 | 12.68 | 7.94 | 3 | 3 | 3.5 | 14 | 8.5 | 26 | 21.5 | 20.5 | 5 | 4 | M8×20 |
| HBS07C | 7 | 8 | 32 | 37.98 | 25.6 | 12.68 | 7.94 | 3 | 3 | 3.5 | 14 | 8.5 | 30 | 24 | 23 | 6 | 4 | M10×20 |
| HBS09C | 9 | 9 | 40 | 48 | 26.99 | 12.7 | 9.5 | 3 | 3 | 3.5 | 16 | 9 | 35 | 26 | 25 | 6 | 4 | M10×25 |
| HBS10C | 10 | 10 | 50 | 58 | 26.99 | 12.7 | 9.5 | 3 | 3 | 3.5 | 16 | 9 | 40 | 30 | 30 | 6 | 4 | M12×25 |
| HBS12C | 12 | 12 | 115 | 40 | 54 | 31.75 | 9.5 | 3 | 3 | 5.5 | 19 | 13 | 46 | 35 | 35 | 4 | 4 | M12×25 |
