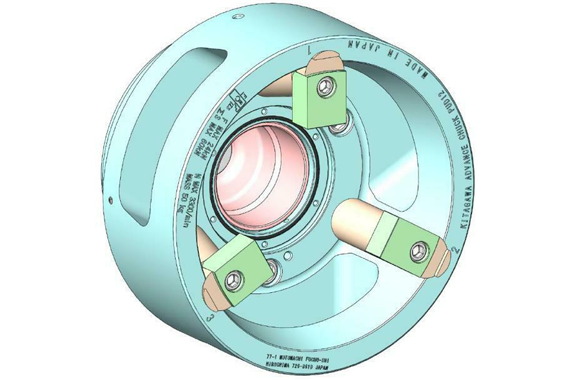

KITAGAWA PUD12 Advanced Chuck

Made in Japan

Manufacturer: KITAGAWA

Model: PUD12

Feature:

The large centre hole embraces the workpiece deeply to minimize run-out during machining.

The backup wall reduces the deformation of the workpiece to help machining with high roundness and cylindricity.

This chuck is ideal for machining workpieces such as differential cases and flanged shafts.

A large opening for discharging chips is provided in the backup wall to prevent troubles caused by accumulated chips.

Specification

Model PUD12
Jaw Stroke (Diameter) (mm) 5
Plunger Stroke (mm) 10
Gripping Range (mm) Max. 192
Min. 150
Max. Draw Bar Pull Force (kN) 24
Max. Static Gripping Force (kN) 60
Max. Speed (min-1) 3300
Moment of Inertia (kg・m2) 0.67
Net Weight (kg) (with Soft Top Jaws) 50
Matching Cylinder Y1225R
