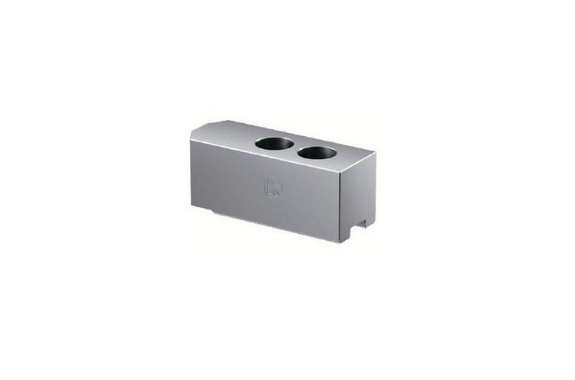

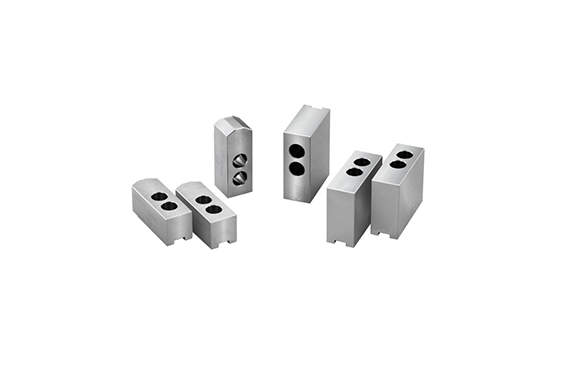

Kitagawa SJ Series Chuck Parts

Manufacturer: Kitagawa Corporation.
Model: SJ series

Feature:

SJ series is a model change of the existing SB series and is fully compatible with SB series.
If you have any questions, please consult us.
SJ 06A1-80Chuck size number. (The height of standard jaw is not displayed.)Total jaw height (mm).
Type 1: 3 pcs
Type 2: 4 pcs (for 4 jaws)
Type 3: 3 pcs
Type 4: 4 pcs
3 Bolt pitch:
26mm×2 = 52mm
26mm×3 = 78mm
26mm×60°
Serration pitch: 1.5mm/1.0×60°, 2.0mm/3.0×60°
4 Material:
A = Aluminum
S = Steel
B = Cast iron5: Special specifications:
C = Cut-off rest
L = Lightweight
N = New type
Hollow jaw is marked as “-H” (e.g., SJ06A1H-80)
Hollow jaw depth:
15” chuck → 18mm
12” chuck → 38mm
15” chuck (another type) → 43mm Kitagawa SJ Series Chuck Parts

Combination of Soft Jaws:

Standard jaw	High jaw	Adaptive closed centre chuck	Adaptive open centre chuck
SJ04A1	SJ04A1-036 SJ04A1-048	N-04, AS04, NL04, NRC04	B-204
SJ04N1	SJ04N1-036 SJ04N1-048	NT04, AT04	BT204
SJ05A1	SJ05A1-038 SJ05A1-053	N-05	B-205
SJ05N1	SJ05N1-038 SJ05N1-053	NT05	BT205
SJ05N1T	SJ05N1T-53		BR05, B-205
SJ06A1	SJ06A1-066	NL06, NL06A, AS06, NRC06, HR508	BR06, BB206, GJ07, DLR08
SJ06N1	SJ06N1-066	NL06, AT06	BT06, BT206
SJ06LT	SJ06LT-66		UVE160K
SJ06J1	SJ06J1-066	DL206	B-206, BS306, BL206, HOH+206
SJ07A1	SJ07A1-076	NLT08, AT08	BT208, BL208
SJ08A1	SJ08A1-076	NT-08, NL08, DL08, AS08, NRC08	BR08, BB208, B208, B208A
SJ08J1	SJ08J1-076		GJ08, GJ08B
SJ09A1	SJ09A1-080	SJ10A1-116	HW-08
SJ10A1	SJ10A1-080	SJ10A1-116	NL10, AT10, NRC10
		NLT10, AT10C	BRT10, BT210, BL210
SJ12A1	SJ12A1-090		HW-10, HW-12
SJ12C1	SJ12C1-090	N-12, NL12, DL212	HOH-12K
SJ15C1	SJ15C1-110	NLT12	UVE315K
SJ18N2	SJ18N2-110		BR12-1, BR12-2, BR12, B12
SJ20C1	SJ20C1-110		UVE400K
SB04	SB04B-060	HW-15	B-215
SB06	SB06B-084	N-15, N-18	GJ206
SB08	SB08B-080	N-21, N-24	GB306
SB12	SB12B-070		GB310, GB312
SBW06			PW-06
SBW08			PW-08
SBW10			PW-10
SBW12			PW-12
SBW15			PW-15, PW-21

Combination Table for Standard Soft Jaws

Chuck	Soft jaw	Mounting bolt	Chuck	Soft jaw	Mounting bolt
BR05	SJO5N’	M8x20	NL04	SJ04B1	M8X22
BROG	SJ06B1	M10x25	NL06	SJ06B1	M10X30
BR08	SJ08B1	M12x3C	NL08	SJ08B1	M12X35
BRIO	SJ10B1	M12x3C	NL1C	SJ10A1	M12x35
BR12	SJ12N^–	M16x35	NL12	SJ12A1	M14X45
			NL18	SJ15N1	M20X55
B-204	SJ04N’	M8x20
B-205	SJO5N1	M8x20	NT04	SJ04A1T	M8x22
B-206	SJ06L1A	Ml 0x25.	NT05	SJ05A1T	M8X22
B-208	SJ08B1	Ml 2×30	NT15	SJ12NI	M20x55
B-210	SJ10B1	Ml 2×30
B-21P	SJ12N’	M16X40	NLT06	SJ06A1T	M10x25
B-215	SJ15N1	M20X55	NLT08	SJ08A1	M12x30
			NLT1O	SJ10AI	M12x35
B-15	SJ15C1	MPOxGO	NLT12	SJ12A1	M14X45
B-18	SJ15C1	M20X60
B-21	SJ18A2	M20X60	ML06	SJ06B1	Ml 0x25
B-24	SJ18A2	M20xG0	ML08	SJ08B1	Ml 2×30

BB206	SJ06B1	M10x25	MLTOG	SJ06A1T	M10X25
BB2O8	SJ08B1	M 12×30	MLT08	SJ08AI	M12x30
BB210	SJ1 OB 1	Ml 2×30
BB212	SJ12N’	M16x35	MLVO6	SB06A1V	Ml 0x25
			MLV08	SB08A1V	Ml 2×30
BS306	SJ06LIA	M10x25
BS308	SJ08B1	M12X3C	HW-08	SJ08B1G	M10x25
BS31C	SJ1 OB 1	M12X3C	HW-10	SJ10A2G	Ml 2×35
			HW-12	SJ10A2G	Ml 2×35
BL206	SJ06L1A	M10X25	HW-15	SJ15A2G	M14X40
BL208 BL210	&J08§ । SJ1 OB 1	M 12×30 Mi2*3C	UVE160K	SJ06CI	Ml 2×30
BL212	SJ12N1	M16X4C	UVE2OOK	SJ10B1	M12X30
			UVE250K	SJ10B1	M12X30
H0H-206	SJ06L1A	M10X25	UVE315K	SJ12C1	M14X35
H0H-208	SJ08B1	M12X3C	UVE400K	SJ15A2	M20X45
H0H-10K	SJ1OB1	M12X35
H0H-12K	SJ12A1	M14x45	UB450K	SJ18U2	M20X45
H0H-15K	SJ15C1	M20X55	UB560K	UB560K	M20X45
			UB630K	UB710	M24X60
QB306	SB06BB		UB710K	UB710	M24X60
QB308 QB31O	SB08BB SB10BB		HRSO8 \|SJ06B1		M10X25
QB312	SB12BB
			DLR08	SJ06B1	M10X25
BRTO6	SJ06A1T	M12x3C
BRTO8	SJ08A1	M12x3C	DL206	SJ06D1	M10X25
BRT1C	SJ10A1	M16X4C	DL208	SJ08B1	M12X30
BRT12	SJ12N’	M16X35	DL210	SJ10D1	M14X40
			DL212	SJ12A1	M14X40
BT204	SJ04N1T	M8X20
BT205	SJO5N1T	M8x20	PW-06	SBW06	M10X16
BT206	SJ06L1T	M10x25	PW-08	SBW08	M12x20
BT208	SJ08A1	M12x3C	PW-10	SBW10	M16x25
BT21C	SJ10A1	M12X3C	PW-12	SBW12	M16x25
BT212	SJ12N’	M16X4C	PW-15	SBW15	M20X30
			PW-21	SBW15	M20X30
BBT206	SJ06A1T	M10X25
BBT208	SJ08A1	Ml 2×30	AS04	SJ04BI	M8x22
BBT210	SJ1OA1	Ml 2×30	AS06	SJ06B1	M10X30
BBT212	SJ12N1	M16X40	AS08	SJ08B1	Ml 2×35
			ASIC	SJ1OAI	Ml 2×35
BLT206	SJ06L1T	M10x25
BLT208	SJ08A1	Ml 2×30	AT04	SJ04A1T	M8x22
BLT210	SJ10A1	M12X30	ATO6	SJ06A1T	M10X30
BLT212	SJ12N’	M16X40	AT08	SJ08A1	Ml 2×35
			AT10	SJ10A1	Ml 2×35
N-04	SJ.34B1	M8x22
N-05	SJ05B1	M8x22	NRC04	SJ04B1	M8x22
N-06	SJ06B1	Ml 0x30	NRC06	SJ06B1	Ml 0x30
N-08	S.I08B1	Ml 2×35	NRC08	SJ08B1	Ml 2×35
N-10	SJ1OB1	M12X35	NRC1O	SJ10A1	Ml 2X35
N-12	SJ12A1	M14X45
N-15	SJ15N1	M20X55	QJRO7	SJ06B1	M 10×30
N-18	SJ15N’	M20X55	QJR08	SJ08B1	Ml 2×35
N-21	SJ18A2	M20X6C	QJR1O	SJ10B1	Ml 2×35
N-24	SJ18A2	M20X6C	QJR12	SJ12N1	Ml6x45

Interchangeable High jaws with standard jaws

Standard jaw	High jaw
SJ04B1	SJ04A1-036 SJ04A1-048
SJ04A1T*	SB04A1T036* SJ04A1T048*
SJ04N’	SJ04N1 -036 SJ04N1 -048
SJ04N1T*	SJ04N1T036* SJ04N1-048

SJ05B1	SJ05A1-038 SJ05A1-053
SJ05A1T*	SJ05A1T038* SJ05A1T053*
SJ05N’	SJ05N1-038 SJ05N1-053
SJ05N1T*	SJ05N1-038 SJ05N1T-53*

SJ06B1	SJ06A1-066
SJ06A1T*	SJ06A1T066*
SJOGD’	SJOGD 1-066
SJ06L1A	SJ06A1-066
SJ06L1T*	SJ06A1T066*

SJ08B1	SJ08A1-056 SJ08A1-076
SJ08B1Q	SJ08B1Q-76
SJ08A1	SJ08A1-056 SJ08A1-076 SJ08A1T056* SJ08A1T076*

SJ1OA1	SJ10A1-056 SJ10A1-080 SJ10A1-116 SJ10A1T080*
SJ1OB1	SJ10A1-056 SJ10A1-080 3J10A1-116
SJ1OA2Q	SJ10A2Q080

SJ12A1	SJ12A1-090 SJ12A1T090*
SJ12N’	SJ12N1-090

SJ15C1	SJ15C1-1 10
SJ15N•	SJ15N1-1 10

SJ18A2	SJ18A2-1 10

SBOGBB	SB06BB-040
SB08BB	SB08BB-056
SB1OBB	SB10BB-060
SB12BB	SB12BB-070

*Models with the mark are 2 pieces / set.
Others are 3 pieces / set.

BR soft jaw for small diameter griping

Chuck	Soft jaw	Mounting bolt	Gnpong range at grippsng the outer diameter
BR06	SJ06S1	M10x25	08-170
BROS	SJ08S1	Ml 2×30	012-210
BRIO	SJ10S1	M12X30	020-254
BRI 2	SJ12S1	M16X35	034-315
BRT06	SJ06S1	Ml 0X25	014-170
BRT08	SJ08S1	M12X30	016-210
BRT1C	SJ10S1	M12X30	029-254
BRT12	SJ12S1	Ml 6×35	041-315

AII soft jaws listed here come in sets of 3

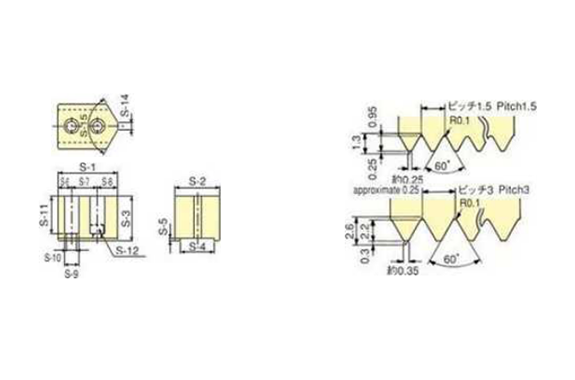

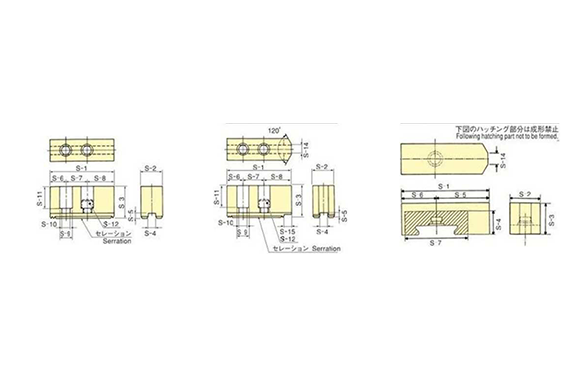

Dimensions

Soft Jaw TYPE	S-l	S-2	S-3	S-4	S-5	S-6	S-7	S-8	S-9	S-10	S-11	S-12	S-14	S-15	Serraiionpccn I
SJ04B1	55	23	25	10	4	13	14	28	13.5	8.5	16	M8	3	13	1.5×60*	2
SJO4A1-036	55	23	36	10	4	13	14	28	13.5	8.5	27	M8			1.5×60’	1
SJ04A1-048	55	23	48	10	4	13	14	28	13.5	8.5	39	M8			1.5X60*	1
SJ04A1T	55	23	25	10	4	13	14	28	13.5	8.5	16	M8			1.5×60’	1
SB04A1T036	55	23	36	10	4	13	14	28	13.5	8.5	27	M8			1.5X60’	1
SJ04A1T048	55	23	48	10	4	13	14	28	13.5	8.5	39	M8			1.5×60’	1
SJ04N•	49.5	23	23	10	4	10	14	25.5	13.5	8.5	14.5	M8	4		1.5×60’	2
SJ04N1-036	49.5	23	36	10	4	10	14	25.5	13.5	8.5	27.5	M8			1.5×60’	1
SJ04N1-048	49.5	23	48	10	4	10	14	25.5	13.5	8.5	39.5	M8			1.5×60-	1
SJ04N1T	49.5	23	23	10	4	10	14	25.5	13.5	8.5	14.5	M8			1.5X60-	1
SJ04N1T036	49.5	23	36	10	4	10	14	25.5	13.5	8.5	27.5	M8			1.5×60*	1
SJ05B1	62	23	27	10	4	14	19	29	13.5	8.5	18	M8	12	14	1.5X60-	2
SJ05A1-038	62	23	38	10	4	14	19	29	13.5	8.5	29	M8			1.5×60’	1
SJ05A1-053	62	23	53	10	4	14	19	29	13.5	8.5	44	M8			1.5X60’	1
SJ05A1T	62	23	27	10	4	14	19	29	13.5	8.5	18	M8			1.5×60’	1
SJ05A1T038	62	23	38	10	4	14	19	29	13.5	8.5	29	M8			1.5X60*	1
SJ05A1T053	62	23	53	10	4	14	19	29	13.5	8.5	44	M8			1.5X60’	1
SJ05N	54	23	25	10	4	12	14	28	13.5	8.5	16.5	M8	5		1.5×60*	2
SJ05N1 -038	54	23	38	10	4	12	14	28	13.5	8.5	29.5	M8			1.5X60’	1
SJ05N1 -053	54	23	53	10	4	12	14	28	13.5	8.5	44.5	M8			1.5X60’	1
SJ05N1T	54	23	25	10	4	12	14	28	13.5	8.5	16.5	M8			1.5×60’	1
SJ05N1T-53	54	23	53	10	4	12	14	28	13.5	8.5	44.5	M8			1.5X60’	1
SJ06B1	72	31	32	12	r V*	15	20	37	17	11	20	MIO	12	15	1.5×60*	2
SJ06S1	75.5	31	32	12	r	15	20	40.5	17	11	20	MIO	5	29.5	1.5×60’	2
SJ06A1-066	72	31	66	12	R	15	20	37	17	11	54	MIO			1.5×60’	1
AJ06A1T	72	31	32	12	r	15	20	37	17	11	20	MIO			1.5×60’	1
SJ06A1T066	72	31	66	12	R	15	20	37	17	11	54	MIO			1 5×60-	1
SJ06C1	76.5	40	37	14	R	15	25	36.5	IS	13	22	M12			1.5×60’	1
SJ06D’	72	31	32	12	r	22	20	3C	17	11	20	MIO	6	15	1.5X60′	2
8 JORD 1-066	72	31	66	12	K	22	20	30	17	11	54	MIO	6	15	1.5X60’	2
SJ06L1A	66	26	28	12	R	12	20	34	17	11	16	MIO	5	12	1.5×60’	2
SJ06L1T	66	26	28	12	R V*	12	20	34	17	11	16	MIO			1.5X60’	1
SJ08A1	95	35	42	14	R	24	25	46	IS	13	27	M12			1.5X60’	1
SJ08B1	95	35	38	14	Gw	24	25	46	19	13	23	M12	12	20	1.5×60*	2
SJ08S1	95	35	38	14	R	19.5	25	50.5	IS	13	23	M12	9	20	1.5×60’	2
SJ08A1-056	95	35	56	14	Gw	24	25	46	IS	13	41	M12			1.5×60’	1
SJ08A1-076	95	35	76	14	R	24	25	46	IS	13	61	M12			1.5X60’	1
SJ08B1Q	9C	31	38	12	R	24	20	46	17	11	26	MIO	16	24	1.5×60’	2
SJ08B1Q-76	9C	31	76	12	R	24	20	46	17	11	64	MIO	16	24	1.5×60’	2
SJ08A1T056	95	35	56	14	R	24	25	46	IS	13	41	M12			1.5×60’	1
SJ08A1T076	95	35	76	14	5	24	25	46	IS	13	61	M12			1.5×60’	1
UB450	165	62	66	25.5	8	37	43	85	32	21	43	M20			3.0×60’	1
UB560K	180	65	69.2	25.5	8	39.5	60	80.5	32	21	45.3	M20			3.0×60’	1
UB710	209.5	75	80	30	9	40	60	109.5	39	26	55	M24			3.0×60’	1

Kitagawa SJ Series Chuck Parts

Soft Jaw TYPE	S-l	S-2	S-3	S-4	S-5	S-6	S-7	S-8	S-9	S-10	S-11	S-12	S-14	Serraiionpccn I	Ret DEG
SJ1OB1	110	4C	42	16	5	30	30	50	19	13	27	M12	15	20 1.5×60′	2
SJ1.OA1	110	4C	42	16	5	30	30	50	19	13	27	M12		1.5×60′	J 1
SJ1OS1	110	4C	42	16	5	25.5	30	54.5	19	13	27	M12	15	20 1.5×60′	2
SJ IDA 1-056	no	4C	56	16	5	30	30	50	19	13	4i	M12		1.5×60′	1
SJ10A1-080	no	4C	80	16	5	30	30	50	19	13	65	M12		1.5×60′	1
SJ10A1-1 16	110	4C	116	16	5	30	30	50	19	13	101	M12		1.5×60′	1
SJ10A2Q	no	4C	42	16	6	30	30	50	19	13	26	M12		3.0×60′	1
SJ10A2Q080	no	40	80	16	6	30	30	50	19	13	64	M12		3.0×60′	1
SJ10A1T080	no	4C	80	16	5	30	30	50	19	13	65	M12		1.5×60′	1
SJ10D1	101.5	45	45	18	5	22.5	30	49	22	15	25	M14	15	17.5 1.5X60*	2
SJ12A1	129	5C	50	18	5	39	30	60	22	15	30	M14		1.5×60′	1
SJ12S1	114	50	50	2’	4	19.5	30	64.5	25	17	33	M16		1.5×60′	1
SJ12A1-090	129	5C	90	18	5	39	30	60	22	15	70	M14		1.5X60′	1
SJ12C1	129	50	50	18	5	32	38	59	22	15	35	M14		1.5×60′	1
SJ12A1T090	129	50	90	18	5	39	30	60	22	15	70	M14		1.5×60′	1
SJ12N1	111	50	50	2‘	4	21	30	60	25	17	33	M16		1.5×60′	1
SJ12N1-090	111	50	90	?•	4	21	30	60	25	17	73	M16		1.5×60′	1
SJ15C1	165	62	66	22	8	37	43	85	32	21	42	M2C		1.5×60′	1
SJ15C1-1 10	165	62	no	22	8	37	43	85	32	21	86	M2C		1.5×60′	1
SJ15AP	156	62	70	22	9	36	60	60	32	21	45	M2C		3.0×60′	1
SJ15A2Q	129	50	50	18	6	32	38	59	22	15	34	M14		3.0×60′	1
SJ15C1T	165	62	66	22	8	37	43	85	32	21	42	M2C		1.5×60′	1
SJ15N1	135	5C	60	25.5	5	26	43	66	32	21	39	M2C		1.5×60′	1
SJ15N1-1 10	135	50	no	25.5	5	26	43	66	32	21	89	M2C		1.5×60′	1
UVE500AR	210	65	10C	25	9	40	60	110	32	21	75	M2C		3.0×60′	1
SJ18A2	180	65	70	25	9	40	60	80	32	21	45	M2C		3.0×60′	1
SJ18A2-1 10	180	65	no	25	9	40	60	80	32	21	85	M2C		3.0X60′	1
SB06BR	90	32	30	24	54	36	68						5		3
SB06BB-040	90	32	40	24	54	36	68						5		3
SBORBR	106	37	38	28	64	42	76						14		3
SB08BB-056	106	37	56	28	64	42	76						14		3
SB10BR	125	42	42	3′	76	49	88						26		3
SB10BB-060	125	42	60	3‘	76	49	88						26		3
SB12BR	139	42	50	34	90	49	92						30		3
SB12BB-070	139	42	70	34	90	49	92						30		3
PW-06	67.5	50.8	5′	38.07	3.3	15	29.36	23.14	17	11	42.4	MIC	8	120′	4
PW-08	74	57	57.47	44.45	3.3	15	34.14	24.86	20	13.5	47	M12	4’	90’	4
PW-10	89.5	70.1	70.2	57.1	3.3	19	44.45	26.05	25	17	59	M16			4
PW-12	108.5	70.1	70.2	57.1	3.3	19	44.45	45.05	25	17	59	M16			4
PW-15	140	76.2	76.5	66.62	3.3	23.9	53.98	62.12	32	21	61.2	M2C			4

Kitagawa Corporation.

Feature:

Combination of Soft Jaws:

Combination Table for Standard Soft Jaws

Interchangeable High jaws with standard jaws

BR soft jaw for small diameter griping

Dimensions

Related Products

Kitagawa PUE Series Advanced Chuck

Kitagawa JM200 Work Grippers

Kitagawa B-200 Series Standard Chuck

Kitagawa VAX125 (One side fixed) Power Vise

Kitagawa DL200 Series Advanced Chuck

Kitagawa HB series Chuck Parts

REQUEST QUOTATION

PAYMENT

MAKER

TOOLS & EQUIPMENT

PLANT FACILITIES

CONSTRUCTION

STEEL MATERIAL

LINK

kouei_trading

Weight Calculation
