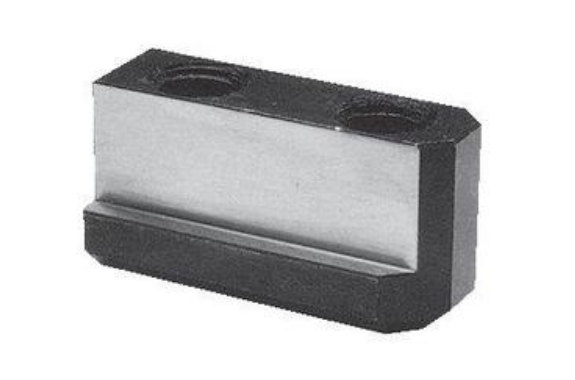

Kitagawa T-nuts Chuck Parts
Manufacturer: Kitagawa Corporation.
Model: T-nuts
Feature:
Please inform us of the chuck type and T-Nut dimensions before ordering.

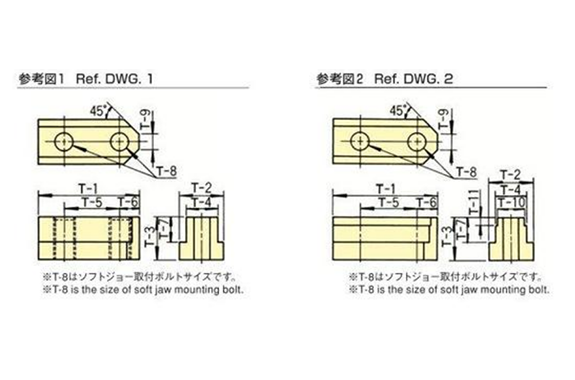

Dimensions
| T-1 | T-2 | T-3 | T-4 | T-5 | T-6 | T-7 | T-8 | T-9 | T-10 | T-11 | Adaptive chuck | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 26 | 14.5 | 12 | 8 | 9 | 6 | 7 | M8 | – | – | – | N-04, NT04, NL04, AS04, AT04, NRC04 | 1 |
| 29 | 15.5 | 12.5 | 9 | 10 | 7 | 8 | M8 | – | – | – | N-05, NT05 | 1 |
| 36.5 | 17.5 | 15 | 9 | 10 | 7 | 8 | M10 | – | – | – | HW-08, HR508E | 1 |
| 41 | 20.5 | 16.5 | 10 | 12 | 8 | 9 | M10 | – | – | – | N-06, NL06, NT06, AS06, AT06, NRC06 | 1 |
| 45 | 20.5 | 18.5 | 10 | 12 | 8 | 9 | M10 | – | – | – | N-08, NL08, NT08, AS08, AT08, NRC08 | 1 |
| 48 | 22 | 20 | 12 | 14 | 9 | 10 | M10 | – | – | – | N-10, NL10, AT10C | 1 |
| 51 | 25 | 22 | 12 | 14 | 9 | 10 | M12 | – | – | – | N-12, NL12, NLT12 | 1 |
| 56 | 25 | 22 | 12 | 14 | 9 | 10 | M12 | – | – | – | HOH-12K | 1 |
| 90 | 30 | 28 | 16 | 16 | 10 | 10 | M16 | – | – | – | PW-15, PW-21 | 1 |
| 100 | 35 | 30 | 20 | 18 | 10 | 10 | M16 | – | – | – | B-21, 24, NV21–NV40 | 1 |
| 124 | 40 | 34 | 25 | 20 | 12 | 10 | M20 | – | – | – | UVE160K | 2 |
| 140 | 48 | 36 | 25 | 25 | 14 | 12 | M20 | – | – | – | UVE200K, UVE250K | 2 |
| 170 | 55 | 40 | 32 | 26 | 14 | 12 | M24 | – | – | – | UVE315K | 2 |
| 198 | 64 | 47 | 35 | 30 | 16 | 14 | M24 | – | – | – | UVE400K | 2 |
| 230 | 70 | 52 | 36 | 36 | 20 | 15 | M24 | – | – | – | UB630K, UB710K | 4 |
