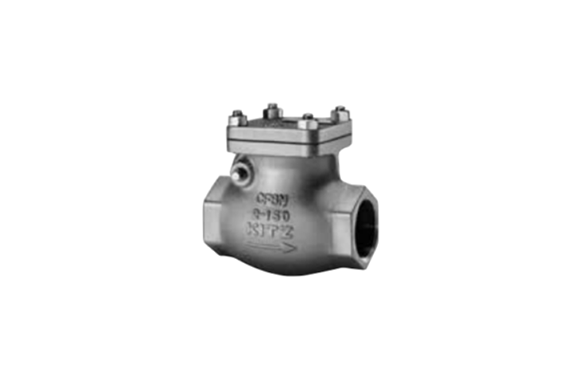

Kitz AK150UOM, AW150UOM Stainless & High Alloy Class 150 Swing Check Valve
Manufacturer: Kitz
Model: AK150UOM, AW150UOM
Structure
Materials
| Parts | Material | Parts | Material |
|---|---|---|---|
| Body | CF8M | Plug | 316SS |
| Cover | CF8M | Gasket | Refer to Page 10 |
| Disc | CF8M | Cover bolt/nut | B8/8 |
| Hinge pin | 316SS | Name plate | Aluminum |
| End to end: | KITZ Std. |
|---|---|
| Connecting threads: | ASME B1.20.1 |
| Connecting sockets: | ASME B16.11 |
| Wall thickness: | ASME B16.34 Class 150 |
Dimensions
| Nominal Size | AK150UOM | AW150UOM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | ¾ | 1 | 1½ | 2 | ½ | ¾ | 1 | 1½ | 2 | ||
| 15 | 20 | 25 | 40 | 50 | 15 | 20 | 25 | 40 | 50 | ||
| L | in. | 3.74 | 3.74 | 5.00 | 5.98 | 6.50 | 3.62 | 3.62 | 4.88 | 5.87 | 6.38 |
| mm | 95 | 95 | 127 | 152 | 165 | 92 | 92 | 124 | 149 | 162 | |
| H | in. | 2.95 | 3.15 | 3.35 | 4.21 | 4.53 | 2.95 | 3.15 | 3.35 | 4.21 | 4.53 |
| mm | 75 | 80 | 85 | 107 | 115 | 75 | 80 | 85 | 107 | 115 | |
