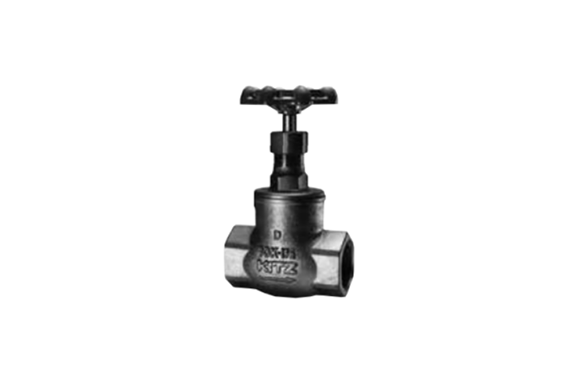

Kitz UD, UDM Stainless & High Alloy 10K Globe Valve With PTFE DISC
Manufacturer: Kitz
Model: UD, UDM
Structure
Materials
| Parts | UD | UDM |
|---|---|---|
| Body | SCS13A | SCS14A |
| Bonnet | SCS13A | SCS14A |
| Stem | 304SS | 316SS |
| Disc | PTFE | |
| Disc holder | 304SS | 316SS |
| Gland | 304SS | 316SS |
| Gland packing | Refer to Page 10 | |
| Packing nut | 304SS | |
| Handwheel | Zinc Diecast (10 to 20) / Aluminum Diecast (25 to 50) | |
| Gasket | PTFE | |
| Packing washer | 316SS | |
| Name plate | Aluminum | |
| Face to face dimensions: | JIS B2011 |
|---|---|
| End thread dimensions: | JIS B0203 |
| Wall thickness: | KITZ Std. |
Dimensions
| Nominal Size | 3/8 | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | |
|---|---|---|---|---|---|---|---|---|
| 10 | 15 | 20 | 25 | 32 | 40 | 50 | ||
| L | 55 | 65 | 80 | 90 | 105 | 120 | 140 | |
| H | 109 | 112 | 113 | 143 | 150 | 171 | 189 | |
| D | 60 | 60 | 70 | 90 | 90 | 100 | 115 | |
