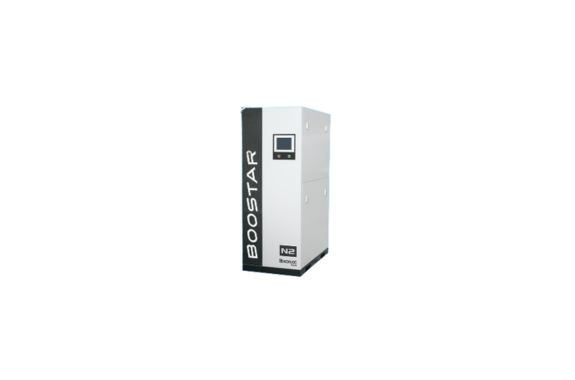

KOFLOC BOOSTAR Series Differential Pressure Free Nitrogen Gas Generator
Manufacturer: KOFLOC Corp.
Model: BOOSTAR series
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
N₂ Gas generators
The nitrogen gas generator supplies high-purity nitrogen gas (95 to 99.999%) by extracting nitrogen gas from the air. As compared with methods using cylinders or liquid nitrogen, this product, which enables users to obtain nitrogen gas onsite, can save the cost and effort of management and operation, and reduce CO₂ emissions associated with transportation.
BOOSTAR Series
The BOOSTAR series is equipped with a patent-pending second booster mechanism and a new process (3-tower PSA system) equipped with 3 suction towers to suppress pressure loss in the process, thereby producing low-pressure general-purpose factory air. It was born as a new concept nitrogen gas generator that can be used and can supply nitrogen gas that exceeds the raw material air pressure. BOOSTAR series, which manufactures nitrogen gas more easily, has solved the conventional problem of insufficient discharge pressure while using factory air, which has a high initial investment,maintenance, and energy-saving effect for the entire factory.
Specifications
| TYPE1 | ||||
|---|---|---|---|---|
| TYPE | BS2-1 | BS3-1 | BS4-1 | |
| Purity*1 | % | 99 | 99.9 | 99.99 |
| Generating Volume*2 | Nm³/h | 10.4–29.5 | 13.0–28.1 | 7.3–16.6 |
| Pressure | MPa | 0.3–0.7 | ||
| Dew Point*3 | °C | ≤ -55 | ||
| Surrounding Temperature / Humidity | °C / % | 5–40°C / 10–80%RH | ||
| Device Dimensions*4 (W × D × H) | mm | 708 × 1206 × 1855 | ||
| Device Weight (Approx.) | kg | 860 | ||
| Electricity Consumption | kW | 0.1 | ||
| Power Supply Voltage | V | AC100–240 1Φ | ||
| Sound Level | dB (A) | 63 | ||
| TYPE2 | ||||
|---|---|---|---|---|
| TYPE | BS2-2 | BS3-2 | BS4-2 | |
| Purity*1 | % | 99 | 99.9 | 99.99 |
| Generating Volume*2 | Nm³/h | 44.4–60.9 | 29.8–43.8 | 20.1–27.8 |
| Pressure | MPa | 0.3–0.7 | ||
| Dew Point*3 | °C | ≤ -55 | ||
| Surrounding Temperature / Humidity | °C / % | 5–40°C / 10–80%RH | ||
| Device Dimensions*5 (W × D × H) | mm | 1136 × 1206 × 1949 | ||
| Device Weight (Approx.) | kg | 1520 | ||
| Electricity Consumption | kW | 0.1 | ||
| Power Supply Voltage | V | AC100–240 1Φ | ||
| Sound Level | dB (A) | 63 | ||
*1 N2 purity is N2 (nitrogen) + Ar (argon) levels.
*2 Values obtained under environmental conditions of 20°C surrounding temperature and 60% relative humidity (RH) are converted for atmospheric pressure of 0°C. The amount of gas that can be produced may decrease due to surrounding temperature and humidity.
*3 The dew point is atmospheric dew point after stabilization.
*4 When equipped with casters, the height increases by 90 mm.
*5 When equipped with casters, the height increases by 107 mm.
* For overseas specifications or special specifications not listed in our catalogue, please contact the relevant staff at our company.
* Product improvements may lead to specification changes.
