KOFLOC Corp.

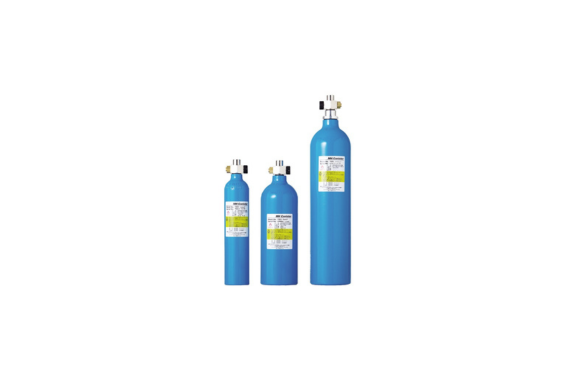

KOFLOC KHCS Series Hydrogen Storage Canister
Manufacturer: KOFLOC Corp.
Model: KHCS series
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
H₂ Gas generators
The hydrogen gas generator supplies high-purity hydrogen gas by electrolyzing water.
It is possible to produce hydrogen gas with a purity of 99.999% by electrolyzing only the required amount of water when required.
KHCS Series
New hydrogen supply device:an alternative to a gas bottle in the laboratory.
It enables safe use and transport of hydrogen.
Hydrogen-absorbing alloy canister is filled with a hydrogen absorbing alloy that has characteristics of hydrogen absorption and emission.
This compact, safe, and reusable canister is a new hydrogen supply tool: an alternative to a gas bottle.
Specifications
| Hydrogen Storage Canister (High Filled Type) | ||||
|---|---|---|---|---|
| Purity: 99.999% | ||||
| Capacity | Dimension | Weight | Discharging Pressure | Code |
| 6NL | φ18 × 92mm | 94g | 0–0.99MPa | KHCS-6L |
| 20NL | φ25 × 133mm | 200g | 0–0.99MPa | KHCS-20L |
| 60NL | φ51 × 166mm | 0.9kg | 0–0.99MPa | KHCS-60LF |
| 80NL | φ51 × 166mm | 1.1kg | 0–0.99MPa | KHCS-80LF |
| 200NL | φ51 × 270mm | 2.1kg | 0–0.99MPa | KHCS-200LF |
| 500NL | φ81 × 270mm | 4.3kg | 0–0.99MPa | KHCS-500LF |
| 900NL | φ89 × 405mm | 7.7kg | 0–0.99MPa | KHCS-900LF |
| Hydrogen Storage Canister (High Purity Type) | ||||
|---|---|---|---|---|
| Purity: ≥99.999% | ||||
| Capacity | Dimension | Weight | Discharging Pressure | Code |
| 50NL | φ51 × 166mm | 0.8kg | 0–0.99MPa | KHCS-60LP |
| 70NL | φ51 × 166mm | 1.0kg | 0–0.99MPa | KHCS-80LP |
| 175NL | φ51 × 270mm | 1.8kg | 0–0.99MPa | KHCS-200LP |
| 400NL | φ81 × 270mm | 3.5kg | 0–0.99MPa | KHCS-500LP |
| 750NL | φ89 × 405mm | 6.8kg | 0–0.99MPa | KHCS-900LP |
* The product is designed to supply gas for analyzers and for tests/research, and is not designed for uses intended for the human body, such as food addition or inhalation.
Option
| CANISTER-BASE | ||
|---|---|---|
| Code | KHCS-0 | |
| Power Supply Voltage | V | AC100V, 50/60Hz |
| Electricity Consumption | W | MAX52 |
| Function | Heating Temperature | |
| Heating / Cooling | °C | MAX60 (Safety limiter operates at 60°C) |
| Cooling Temperature | °C | 0°C (Below room temperature) |
| Corresponding Canister Size | L | 60, 200, 500 |
| Device Dimensions (W × D × H) | mm | 110 × 210 × 220 |
| Device Weight (Approx.) | kg | 3.2 |
| For CANISTER-BASE | Code |
|---|---|
| Support Holder for Canister 60L & 200L | KHCS-BA-OP-1 |
| Support Holder for Canister 6L & 20L | KHCS-BA-OP-2 |
| Joint / Connector | Code |
|---|---|
| Quick-Connect (Body) | KHCS-BA-OP-3 |
| Quick-Connect (Stem) with 1/8″ Tube Fitting Plug | KHCS-BA-OP-4 |
| L-Shaped Tube Joint | KHCS-BA-OP-5 |
| Quick-Connect (Stem) | KHCS-BA-OP-6 |
* For overseas specifications or special specifications not listed in our catalogue, please contact the relevant staff at our company.
* Product improvements may lead to specification changes.
