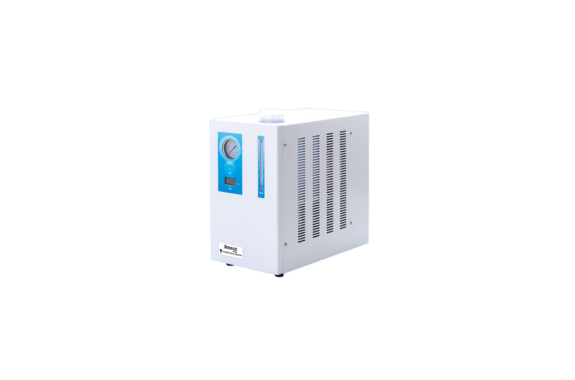

KOFLOC KOH Series Hydrogen Gas Generator
Manufacturer: KOFLOC Corp.
Model: KOH series
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
H₂ Gas generators
The hydrogen gas generator supplies high-purity hydrogen gas by electrolyzing water.
It is possible to produce hydrogen gas with a purity of 99.999% by electrolyzing only the required amount of water when required.
KOH Series
This hydrogen gas generator uses water electrolysis to produce hydrogen. Therefore, high-pressure gas regulations do not need to be applied. In addition, this easy-to-operate device provides a safe and convenient hydrogen supply environment.
Moreover, it electrolyzes water to generate the required amount of hydrogen gas when needed, with a purity of 99.999%. As a result, users are freed from carrying, replacing, and maintaining gas cylinders. Furthermore, the unit requires only a small installation space and is maintenance-free.
Specifications
| TYPE | Standard (500 mL/min, 0.4 MPa) | High Pressure (500 mL/min, 0.9 MPa) | High Flow (1000 mL/min, 0.4 MPa) | |
|---|---|---|---|---|
| Code | KOH2-500 | KOH2-500HP | KOH2-1000 | |
| Purity | % | 99.999*1 | ||
| Generating Volume | mL/min | 500 | 1000 | |
| Pressure | MPa | 0–0.4 | 0–0.9 | 0–0.4 |
| Surrounding Temperature | °C | 1–40 | ||
| Water Requirements | Conductivity ≤ 1.0 μS/cm | |||
| Water Tank Volume | L | 4 | ||
| Power Supply Voltage | V | AC100V, 50–60Hz, 200W | AC100V, 50–60Hz, 750W | |
| Output Shape | 1/8 inch (SUS) | |||
| Device Dimensions | mm | 220 × 400 × 360 | 220 × 480 × 360 | |
| Device Weight (Approx.) | kg | 14 | 18 | |
| Indicator | Pressure, Flow, Power, Water Level | |||
*1 It can be highly purified by the filter extension (> 99.99999%).
* The product is designed to supply gas for analyzers and for tests/research, and is not designed for uses intended for human bodies, such as food addition and suction.
* For overseas specifications or special specifications not listed in our catalogue, please contact relevant staff at our company.
* Product improvements may lead to specification changes.
