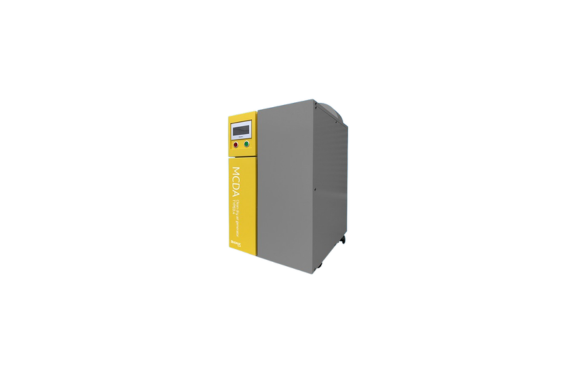

KOFLOC M Series (MCDA) Small Clean Dry Air Generator
Manufacturer: KOFLOC Corp.
Model: M series (MCDA)
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
Clean dry air generators
The clean dry air (CDA) generator removes moisture contained in the air to supply gas that is –70°C or lower under the atmospheric pressure. As compared with methods using cylinders to obtain CDA, this onsite CDA generator can save the cost and effort of management and operation, and reduce CO₂ emissions associated with transportation.
M Series(MCDA)
The M series is equipment which pursues improvement in miniaturization and maintainability.
Adoption of a multi-layout package makes it possible to select the directions of panel surfaces and exhaust ducts according to installation sites.
With a small-sized compressor built in, it is possible to move and use this equipment as long as there is AC100V power.
Specifications
| TYPE | MCDA-0.6-5 (6) | MCDA-0.8-5 (6) | |
|---|---|---|---|
| JIS Grade | JIS0:2:0※3 | ||
| Generating Volume*1 | NL/min | 20 (25) | 30 (35) |
| Pressure | MPa | 0.2 | |
| Dew Point*2 | °C | ≤ -70 | |
| Surrounding Temperature / Humidity | °C / % | 5–35°C / 10–80%RH | |
| Device Dimensions (W × D × H)*4 | mm | 390 × 600 × 620 or 600 × 390 × 620 | 430 × 700 × 800 or 700 × 430 × 800 |
| Device Weight (Approx.) | kg | 73 | 106 |
| Electricity Consumption | kW | 0.6 | 0.8 |
| Power Supply Voltage | V | AC100 1Φ 50/60Hz | |
*1 Values obtained under environmental conditions of 20°C surrounding temperature and 60% relative humidity (RH) are converted for atmospheric pressure of 0°C. The amount of gas that can be produced may decrease due to surrounding temperature and humidity.
*2 The dew point is atmospheric dew point after stabilization.
*3 JIS 0:2:0 is the standard for maximum particle content, under-pressure dew point, and total oil concentration.
*4 Casters and protruding objects are not included.
* Figures in brackets are for 60Hz specifications.
| JIS Grade | Detail | |||
|---|---|---|---|---|
| Maximum Particle Content | 0 | The maximum number of particles per 1 m³ (particle size = d μm) | ||
| 0.1 < d ≤ 0.5 | 0.5 < d ≤ 1.0 | 1.0 < d ≤ 5.0 | ||
| ≤ 10 Pieces | ≤ 4 Pieces | ≤ 2 Pieces | ||
| Dew Point (Under Pressure) | 2 | ≤ -60°C (Atmospheric Pressure Dew Point ≤ -70°C) | ||
| Total Oil Concentration | 0 | Liquid Oil, Oil Mist, Oil Vapor | ||
| ≤ 0.005 mg/m³ | ||||
* For overseas specifications or special specifications not listed in our catalogue, please contact relevant staff at our company.
* Product improvements may lead to specification changes.
