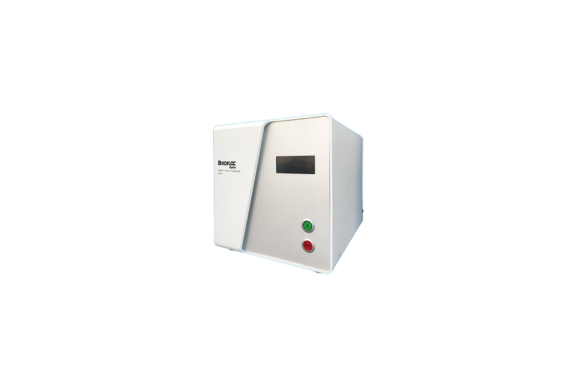

KOFLOC Mini-CUBE NCP Or NCPW Series (MAIRS-NCP Or NCPW) Compact Clean Dry Air Generator
Manufacturer: KOFLOC Corp.
Model: Mini-CUBE NCP/NCPW series (MAIRS-NCP/NCPW)
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
Clean dry air generators
The clean dry air (CDA) generator removes moisture contained in the air to supply gas that is –70°C or lower under the atmospheric pressure. As compared with methods using cylinders to obtain CDA, this onsite CDA generator can save the cost and effort of management and operation, and reduce CO₂ emissions associated with transportation.
Mini-CUBE NCP/NCPW Series (MAIRS-NCP/NCPW)
MAIRS is the clean, dry air generator. It can supply the dry air that atmospheric pressure dew point
can be less than -70℃. Air cleanliness grade supports ISO8573-:2010. （JISB8392-1:2012【0:2:0】）
Specifications
| TYPE | MAIRS-NCP | MAIRS-NCPW | |
|---|---|---|---|
| JIS Grade | JIS0:2:0 | ||
| Generating Volume*1 | NL/min | 10 | 16 |
| Pressure | MPa (G) | 0.2 | |
| Surrounding Temperature / Humidity*2 | °C / % | 5–35°C / 10–80%RH | |
| Device Dimensions (W × D × H) | mm | 310 × 270 × 310 | 310 × 392 × 310 |
| Device Weight (Approx.) | kg | 18 | 23 |
| Sound Level | dB | 50 | 55 |
| Electricity Consumption | kW | 0.1 | 0.035 |
| Power Supply Voltage | V | AC100–240 1Φ 50/60Hz | |
| Energy Saving Operation | × | × | |
| Supply Air Conditions | 0.65–0.69 MPa ≥ 15 NL/min, Max. 27 NL/min, Oil-Free Dry Air | 0.65–0.8 MPa ≥ 35 NL/min, Oil-Free Dry Air | |
*1 Values obtained under environmental conditions of 20°C surrounding temperature and 60% relative humidity (RH) are converted for atmospheric pressure of 0°C. The amount of gas that can be produced may decrease due to surrounding temperature and humidity.
*2 When intake temperature is high, equipment performance decreases. There is also a danger that this could lead to an accelerated maintenance cycle. Ventilate the room when surrounding temperature is high.
| JIS Grade | Detail | |||
|---|---|---|---|---|
| Maximum Particle Content | 0 | The maximum number of particles per 1 m³ (particle size = d μm) | ||
| 0.1 < d ≤ 0.5 | 0.5 < d ≤ 1.0 | 1.0 < d ≤ 5.0 | ||
| ≤ 10 Pieces | ≤ 4 Pieces | ≤ 2 Pieces | ||
| Dew Point (Under Pressure) | 2 | ≤ -60°C (Atmospheric Pressure Dew Point ≤ -70°C) | ||
| Total Oil Concentration | 0 | Liquid Oil, Oil Mist, Oil Vapor | ||
| ≤ 0.005 mg/m³ | ||||
* For overseas specifications or special specifications not listed in our catalogue, please contact relevant staff at our company.
* Product improvements may lead to specification changes.
