KOFLOC Corp.
KOFLOC Mini-CUBE Series (MOZHS Or MOZLS) Compact Ozone Gas Generator
Manufacturer: KOFLOC Corp.
Model: Mini-CUBE series (MOZHS/MOZLS)
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
O₃ Gas generators
The ozone gas generator produces ozone gas by extracting concentrated oxygen gas from the air and processing the gas in the silent discharge type ozonizer.
By using concentrated oxygen gas as a raw material with the PSA method, our product has largely suppressed generation of poisonous NOx gas.

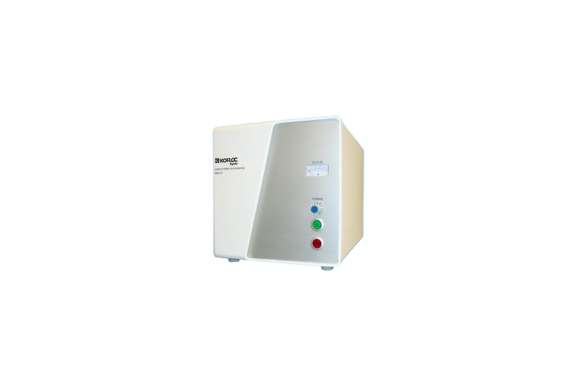

Mini-CUBE Series(MOZHS/MOZLS)
MOZS is an ozone gas generator.
This can generate ozone gas using oxygen generated by a built-in oxygen gas generator as a raw material.
| TYPE | MOZHS-0.3 | MOZLS-0.3 | |
|---|---|---|---|
| Generating Volume*1 | g/h | 1.5 | 2 |
| Generating Concentration | g/Nm³ | 50 | 25 |
| PSA Oxygen Flow Rate | NL/min | 0.5 | 1.5 |
| Pressure | MPa | 0.05 | |
| Surrounding Temperature | °C | 5–35 | |
| Device Dimensions (W × D × H)*2 | mm | 310 × 392 × 310 | |
| Device Weight (Approx.) | kg | 25 | |
| Electricity Consumption | kW | 0.06–0.3 | |
| Power Supply Voltage | V/Hz | AC100–240 1Φ 50/60Hz | |
| Cooling Method | Air Cooling Type | ||
*1 Design conditions are 20°C and 1 ATM.
*2 Dimensions do not include projections and casters.
* For overseas specifications or special specifications not listed in our catalogue, please contact relevant staff at our company.
* Product improvements may lead to specification changes.
