KOGANEI CORPORATION

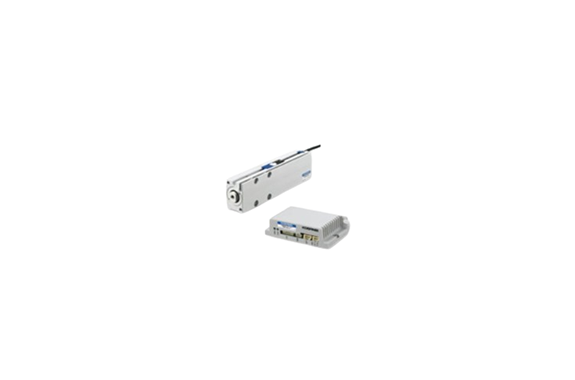

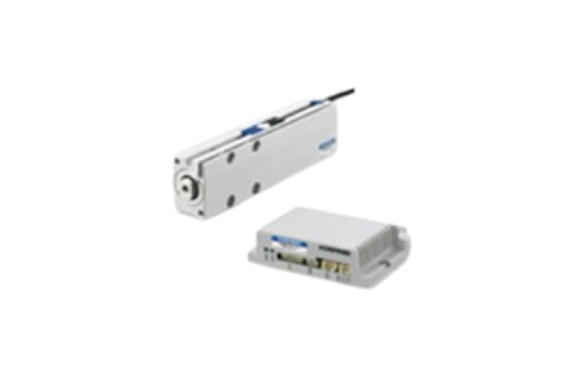

Koganei Actuator
Manufacturer: KOGANEI CORPORATION
Features
Enhance your industrial automation with our user-friendly shock absorbers. Because these units feature simple operation between two points, you can streamline your system setup. Furthermore, the design allows for easy stroke, speed, and thrust level settings to meet your specific needs. This flexibility ensures optimal performance across various applications. Additionally, the open-loop control provides a cost-effective solution for your facility. Since the system lacks a linear motor, the low-speed mechanism ensures extremely quiet operation. Consequently, you can maintain a productive and noise-free working environment.
Specifications
| Item \ Model | IBM2A5 | IBM2A10 | IBM2A16 | ||||
|---|---|---|---|---|---|---|---|
| Motor | 2-phase stepping, moving magnet system | ||||||
| Stroke | mm [in] | 10 [0.394] | 20 [0.787] | 20 [0.787] | 30 [1.181] | 32 [1.260] | 48 [1.890] |
| Maximum thrust N [lbf] | Vertical useNote | 0.55 [0.124] | 2 [0.45] | 6 [1.35] | |||
| Horizontal use | 0.7 [0.16] | 2.5 [0.56] | 8 [1.80] | ||||
| Maximum speed | mm/s [in/sec] | 300 [11.8] | 400 [15.7] | 500 [19.7] | 600 [23.6] | 600 [23.6] | 700 [27.6] |
| Position sensing | None | ||||||
| Cable | Flexible cable ø4.5 25AWG 4-lead 1000, 3000, 5000 mm [3.28, 9.84, 16.40 ft] | ||||||
| Mounting methods | Side mount A, B, and front mount | ||||||
| Materials | Main unit: Aluminum alloy | ||||||
| Mass (excluding cable) | g [oz] | 60 [2.12] | 70 [2.47] | 160 [5.64] | 180 [6.35] | 500 [17.64] | 550 [19.40] |
| Operating temperature/humidity range | 0~40°C [32~104°F] 35 to 85% RH (non-condensation, non-freezing) | ||||||
| Storage temperature | -10~65°C [14~149°F] (non-condensation, non-freezing) | ||||||
