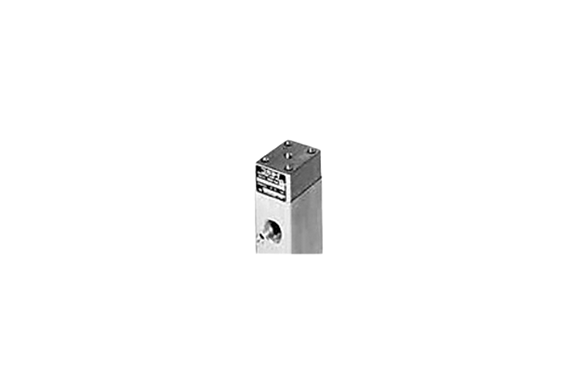

Koganei Air-Piloted Valve 600-4A Series
Manufacturer: KOGANEI CORPORATION
Features
These air-piloted valves are the ideal choice for both master and pilot valves, offering exceptional control for all pneumatic systems. Additionally, they provide precise and reliable performance, ensuring seamless operation across various applications. Consequently, these valves are a crucial component in achieving efficient and smooth pneumatic control.
Specifications
| Item | Basic Model | For Direct Piping, F Type Manifold | For Sub-base Piping, A Type Manifold | |||
|---|---|---|---|---|---|---|
| Model | 600-4A | 600-4A2 | 600-4A | 600-4A2 | ||
| Media | Air | |||||
| Effective Area (Cv) mm² | 60 (3.33) | 60 (3.33) | 60 (3.33) | 60 (3.33) | ||
| Port Size | Main: Rc1/2 or Rc3/8 | Main: Rc1/2 or Rc3/8 | Main: Rc1/2 or Rc3/8 | Main: Rc1/2 or Rc3/8 | ||
| Pilot | Pilot: Rc1/8 | |||||
| Lubrication | Not Required | |||||
| Operating Pressure Range (MPa [kgf/cm²] [psi]) | Main: 0.0~0.9 [0~9.2] [0~131] | Main: 0.0~0.9 [0~9.2] [0~131] | Main: 0.0~0.9 [0~9.2] [0~131] | Main: 0.0~0.9 [0~9.2] [0~131] | ||
| Proof Pressure (MPa [kgf/cm²] [psi]) | 1.35 [13.8] [196] | |||||
| Operating Temperature Range (atmosphere and media) °C [°F] | 5~50 [41~122] | |||||
| Shock Resistance (m/s² [G]) | Lateral direction: 980.7 (100.0) | Lateral direction: 980.7 (100.0) | Lateral direction: 980.7 (100.0) | Lateral direction: 980.7 (100.0) | ||
| Mounting Direction | Any | |||||
