KOGANEI CORPORATION

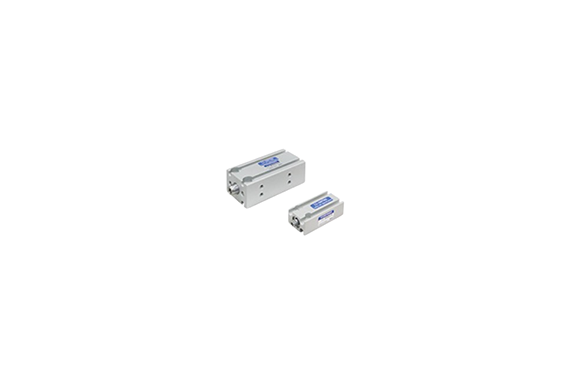

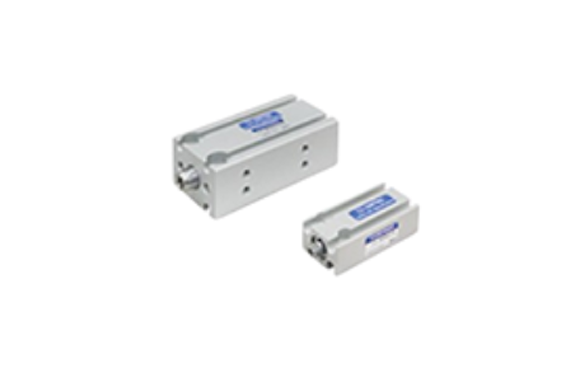

Koganei Basic Cylinders Double Acting Type (Long Life)
Manufacturer: KOGANEI CORPORATION
Features
Maximize industrial productivity with our high-durability pneumatic solutions featuring compact precision regulators and long-life cylinders. We offer advanced shock absorbers with a linear orifice structure for softened impacts alongside silicone-free components that ensure JIS ISO Class 5 cleanliness. Our environmentally friendly designs reduce resource usage and waste generation by extending the service life of industrial infrastructure. Because these systems operate without lubrication and maintain exceptionally low dust emissions, they provide a reliable, clean-room compatible solution for precise automation.
Specifications
| Cylinder bore | 6 [0.236] | 8 [0.315] | 10 [0.394] | 12 [0.472] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] | 40 [1.575] | |
|---|---|---|---|---|---|---|---|---|---|---|
| Operating type | Double acting type | |||||||||
| Medium | Air | |||||||||
| Operating pressure range | MPa [psi] | 0.12 to 0.7 [17 to 102] | 0.06 to 0.7 [9 to 102] | 0.05 to 0.7 [7 to 102] | ||||||
| Proof pressure | MPa [psi] | 1.05 [152] | ||||||||
| Operating temperature range | °C [°F] | 0 to 60 [32 to 140] | ||||||||
| Operating speed range | mm/s [in/sec] | 10 to 500 [0.4 to 20] | ||||||||
| Cushion | Rubber bumper | |||||||||
| Lubrication | Not required | |||||||||
| Port size | M3×0.5 | M5×0.8 | Rc1/8 | |||||||
