KOGANEI CORPORATION

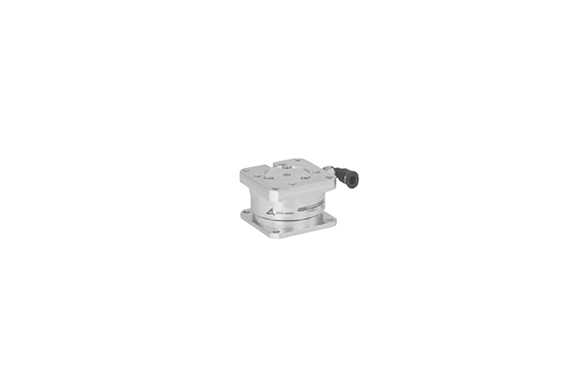

Koganei Compliance Modules
Manufacturer: KOGANEI CORPORATION
Features
This positioning error correction module offers quick response and excellent repeatability. Additionally, it comes mounted with a locking mechanism for enhanced security and stability during operation.
Operating Principles
The frame and plate enclose rolling steel balls, which move freely under the light centrifugal force of the restraining ring.
When air pressure is applied, it pushes the inner plate down, locking it into the determined reference position with the locating steel ball.
As a result, this module provides precise and reliable positioning, ideal for high-precision tasks and automation systems.
Specifications
| Item | Model |
|---|---|
| SHM61J | |
| Mounting | Mounting surface (Frame) J Mounted surface (Plate) J |
| Media | Air |
| Operating pressure range MPa [psi] | 0.2～0.6 [29～87] |
| Proof pressure MPa [psi] | 1.0 [145] |
| Operating temperature range °C [°F] | 0～60 [32～140] |
| Operation type and mechanism | Horizontally passive type, with locking mechanism |
| Lubrication | Not required |
| Maximum load capacity kg [lb.] | 0.8 [1.8] |
| Allowable moving range | X・Y mm [in.] ±1.0 [±0.039] Z mm [in.] -0.5 [–0.020] θ Degree ±2.5° α Degree ±6.0° |
| Centripetal force | X・Y N [lbf] 5.0 [1.12] (At movement of 0.5mm [0.020in]) Z N [lbf] 5.0 [1.12] (At movement of 3.0mm [0.012in]) |
| Centripetal precision | When locked mm [in.] φ 0.04 [0.0016] MAX. When released mm [in.] φ 0.20 [0.0079] MAX. |
| Mass g [oz.] | 110 [3.88] |
