KOGANEI CORPORATION

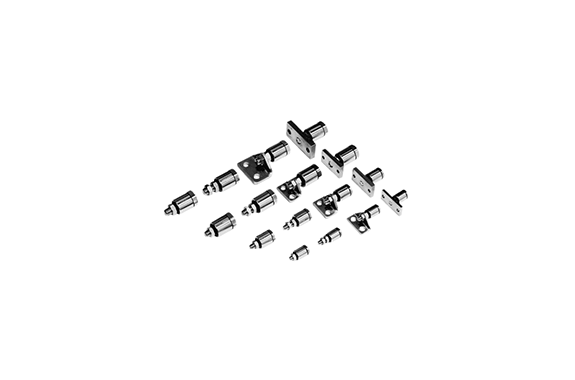

Koganei Cylinder Joints
Manufacturer: KOGANEI CORPORATION
Features
Aligning the axial center and correcting the parallelism can be performed easily.
High machining accuracy for aligning the axial center is not required.
Time taken for installation can be greatly reduced.
The overall shape is simple and small, allowing simple handling.
A dust seal is provided preventing any breakdown due to foreign objects or dust.
Specifications
| Model | Applicable cylinder rod thread size | Applicable cylinder and bore size | Maximum thrust of applicable cylinder at 1MPa [145 psi.] N [lbf.] | Maximum tensile strength load N [lbf.] | Allowable eccentricity U mm [in.] | Swivel angle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pen | Multi | JgC (male thread specification · B) | Slim | Twinport | DYNA | ||||||
| CJ-3 × 0.5 | M3 × 0.5 | 6 | 6 | 6 | — | — | — | 28.3 [6.4] | 3334.3 [750] | 0.5 [0.020] | ±5° |
| CJ-4 × 0.7 | M4 × 0.7 | 10 | — | — | — | — | — | 78.5 [17.6] | 3334.3 [750] | 0.5 [0.020] | |
| CJ-5 × 0.8 | M5 × 0.8 | 16 | 16 | — | — | — | — | 201.1 [45.2] | 5684 [1323] | 0.5 [0.020] | |
| CJ-6 × 1 | M6 × 1 | — | 16 | 16 | — | — | — | 201.1 [45.2] | 5684 [1323] | 0.5 [0.020] | |
| CJ-8 × 1 | M8 × 1 | — | 20 | 20, 25 ※ | 20 | — | — | 314.2 [70.6] (490.9 [110.1]) ※ | 2054 [463] | 0.5 [0.020] | |
| CJ-10 × 1.25 | M10 × 1.25 | — | 25 | 25, 32 | 25, 32 | 32 | — | 804.2 [180.8] | 31381.3 [11025] | 0.75 [0.0295] | |
| CJ-12 × 1.25 | M12 × 1.25 | — | — | 32 | 32 | — | 40 | 3117.2 [700.8] | 44903.3 [11025] | 1 [0.039] | |
| CJ-14 × 1.5 | M14 × 1.5 | — | — | 40 | 40, 50, 63 | 40 | — | 3117.2 [700.8] | 62762.6 [14112] | 1.25 [0.0492] | |
| CJ-18 × 1.5 | M18 × 1.5 | — | — | 50 | 50, 63 | — | — | 5026.5 [1130] | 112776.5 [25352] | 2 [0.079] | |
| CJ-22 × 1.5 | M22 × 1.5 | — | — | 63 | 80 | — | — | 7854.0 [1765.7] | 122583.1 [27557] | 2.5 [0.098] | |
| CJ-26 × 1.5 | M26 × 1.5 | — | — | 100 | — | — | — | 7854.0 [1765.7] | 122583.1 [27557] | 2.5 [0.098] | |
