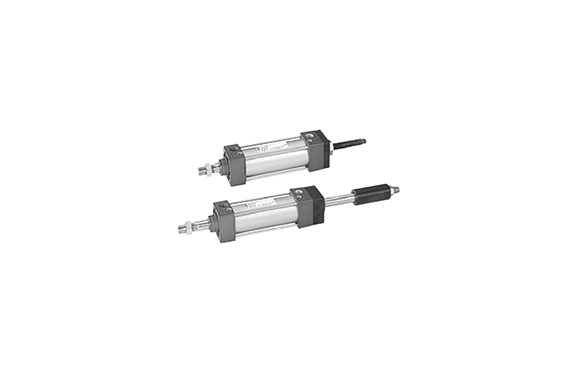

Koganei Dyna Stroke Adjusting Cylinders Push Side Stroke Adjusting Type Pull Side Stroke Adjusting Type
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Bore size mm [in.] | 40 [1.575] | 50 [1.969] | 63 [2.480] | 80 [3.150] | 100 [3.940] |
|---|---|---|---|---|---|---|
| Operation type | Double acting type with stroke adjusting mechanism | |||||
| Media | Air | |||||
| Mounting type | Basic type, Foot type, Axial foot type, Rod side flange type, Trunnion type | |||||
| Stroke adjusting range mm [in.] | Push side stroke | –50 → 0 [–1.969 → 0] (To the specified stroke) | ||||
| Pull side stroke | –60 → 0 [–2.362 → 0] (To the specified stroke) | |||||
| Operating pressure range | MPa [psi.] | 0.05 ~ 1.0 [7 ~ 145] | ||||
| Proof pressure | MPa [psi.] | 1.5 [218] | ||||
| Operating temperature range | °C [°F] | –10 ~ 70 [14 ~ 158] (Freezing prohibited, With sensor is 0 ~ 60 [32 ~ 140].) | ||||
| Operating speed range mm/s [in./sec.] | Push side stroke | 50 ~ 700 [2.0 ~ 27.6] | ||||
| Pull side stroke | 30 ~ 700 [1.2 ~ 27.6] | |||||
| Cushion | Push side stroke | Head cover side: Variable cushion | Head cover side: Variable cushion | Rod cover side: Rubber bumper | Head cover side: None | |
| Pull side stroke | Rod cover side: Variable cushion | Rod cover side: Variable cushion | Head cover side: Rubber bumper | Head cover side: None | ||
| Cushion stroke | mm [in.] | 16 [0.630] | 20 [0.787] | 25 [0.984] | ||
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 (ISO VG32) or equivalent.) | |||||
| Port size | Rc | 1/4 | 3/8 | 3/8 | 1/2 | |
