KOGANEI CORPORATION

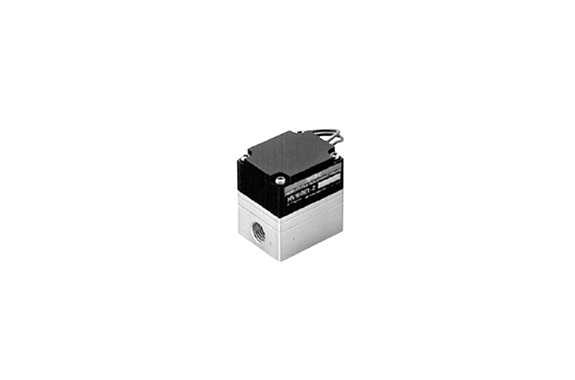

Koganei High Cycle Solenoid Valve
Manufacturer: KOGANEI CORPORATION
Features
The high-cycle solenoid valve significantly improves overall equipment performance. It uses a simple poppet-type structure that provides dependable reliability, and it reduces shocks at the valve seat by using a flat armature and separated valve design. Consequently, it minimizes inertial mass and maintains stable performance during high-frequency operations. Moreover, this structure ensures consistent operation even in demanding environments.
The valve also delivers exceptional durability, which greatly reduces maintenance costs. It offers a long service life of 500 million operations, and it increases the interval between required maintenance periods. In addition, it keeps downtime to an absolute minimum, and it continuously supports highly efficient device operation.
Specifications
| Item | Model | |
| HV160E1-2 | ||
| Media | Air | |
| Operation type | Direct acting type | |
| Number of ports | 2 | |
| Number of positions | 2 | |
| Valve function | Normally closed (NC) | |
| Effective area (Cv) | 7.0 (0.39) | |
| Port size | Rc 1/4 | |
| Lubrication | Not required | |
| Operating pressure range MPa (kgf/cm²) [psi.] | 0 ~ 0.7 (0 ~ 7.1) [0 ~ 102] | |
| Proof pressure MPa (kgf/cm²) [psi.] | 1.05 (10.7) [152] | |
| Response time (ON/OFF) ms | 10 / 5 or below | |
| Maximum operating frequency Hz | 25 | |
| Operating temperature range (atmosphere and media) °C [°F] | 5 ~ 50 [41 ~ 122] | |
| Shock resistance m/s² (G) | Lateral direction: 1373.0 (140.0) Axial direction: 294.2 (30.0) | |
| Mounting direction | Any | |
| Life cycle | Over 5×10⁸ | |
| Mass g [oz.] | 300 [10.58] | |
