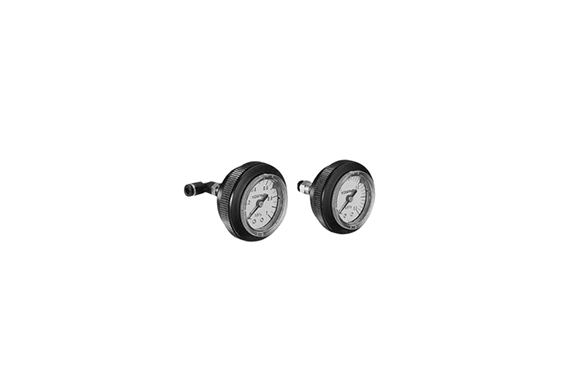

Koganei Panel Mounting Pressure Gauges GP1-40, GP3-40
Manufacturer: KOGANEI CORPORATION
Features
These compact, panel-mounted standard pressure gauges provide efficient and reliable performance. Additionally, they feature a mechanism that prevents the pressure gauge from falling out of the case, ensuring secure use. Moreover, the quick fittings allow for fast and easy piping installation, streamlining the entire setup process.
Specifications
| Item | Model | GP1-40 | GP3-40 |
|---|---|---|---|
| Media | Air | ||
| Port size | R1/4 (M5 X 0.8) | ||
| Pressure indication range | MPa [psi] | 0～1.0 [0～145] | 0～0.3 [0～44] |
| Accuracy | F.S. ±3% | ||
| Outer diameter | mm [in.] | 53 [2.09] | 53 [2.09] |
| Maximum operating pressure | MPa [psi] | 0.93 [135] | 0.25 [36] |
| Operating temperature range (atmosphere and media) | °C [°F] | 5～60 [41～140] | |
| Mass | kg [lb.] | 0.106 [0.234] | 0.106 [0.234] |
| Materials (Case/mounting ring) | Plastic (ABS/POM) | ||
