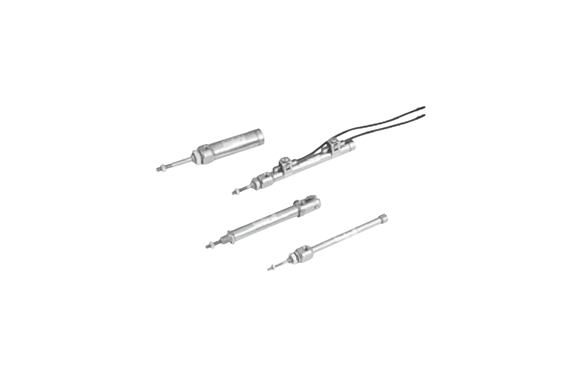

Koganei Pen Cylinders Double Acting Type, Single Acting Push Type, Single Acting Pull Type
Manufacturer: KOGANEI CORPORATION
Feature
- The Pen Cylinder’s compactness and easy handling make production lines in a broad range of industries.
- A new release with even lighter weight and more.
Specifications
| Item | Bore size mm [in.] | ||
|---|---|---|---|
| 6 [0.236] | 10 [0.394] | 16 [0.630] | |
| Operation type | Double acting type, Single acting push type, Single acting pull type | ||
| Media | Air | ||
| Mounting type | Basic type, Foot type, Flange type, Clevis type (clevis type of φ10 and φ16 only) | ||
| Operating pressure range MPa [psi.] | 0.12～0.7 [17～102] | 0.08～0.7 [12～102] | 0.06～0.7 [9～102] |
| Proof pressure MPa [psi.] | 1.05 [152] | ||
| Operating temperature range °C [°F] | 0～70 [32～158] | ||
| Operating speed range mm/s [in./sec.] | 50～750 [2.0～29.5] | ||
| Cushion | None | Rubber bumper | |
| Lubrication | Not required | ||
| Port size | M5 X 0.8 | ||
