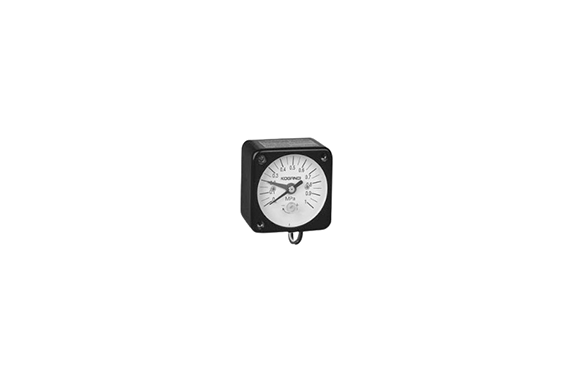

Koganei Pressure Gauges With Built-In Switch GS1-50
Manufacturer: KOGANEI CORPORATION
Features
The same pressure gauge indicates both the set and operating pressures, allowing for easy and accurate monitoring. In addition, panel mounting provides convenient centralized control, integrating management directly within the control panel for streamlined operation.
Furthermore, the unit includes an indicator as standard to check the switch operation state. For wiring connections, you can select between the standard grommet (lead wire) type or the optional DIN connector type, offering flexibility to suit various installation needs.
Specifications
| Item | Model |
|---|---|
| GS1-50 | – |
| Media | Air |
| Maximum operating pressure | MPa [psi]: 0.83 [120] |
| Pressure gauge specifications | Operating temperature range (atmosphere and media) °C [°F]: 5~60 [41~140] Pressure indicator range MPa [psi]: 0~1.0 [0~145] |
| Indicator accuracy | F.S. ±3% |
| Pressure adjusting range | MPa [psi]: 0.1~0.83 [14~120] |
| Regulating pressure indication error | ±3% F.S. |
| Switch specifications | Contact type: Micro switch a contact (NO) Wiring: Standard (Lead wire length: About 500mm [19.7in]) Option: DIN connector Indicator: Standard equipment: LED for DC, neon lamp for AC |
| Hysteresis | MPa [psi]: 0.07 [1.0] |
| Shock resistance | m/s² [G]: 9.8 [1] |
| Mounting direction | Any |
| Mass | kg [oz]: 0.17 [6.0] (0.19 [6.7] with DIN connector) |
| Materials | Body: Aluminum die-casting Case: SPCC Flats of nipple section: Brass Bourdon tube: Brass |
