KOGANEI CORPORATION

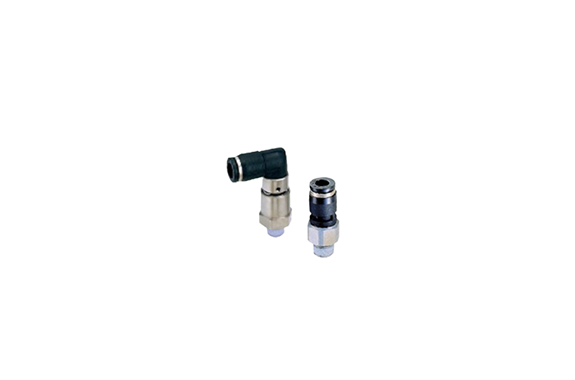

Koganei Quick Fittings Rotary Type High Rotary Type
Manufacturer: KOGANEI CORPORATION
Features
This design is optimal for swing and rotating portions, thanks to its built-in bearing that ensures smooth operation. Additionally, the high rotary type, designed specifically for high-speed rotation, incorporates dual bearings. As a result, it further reduces radial loads, leading to even smoother and more efficient rotation.
Specifications
| Item | Model | TSRH, TLRH | TARH | TBRH |
|---|---|---|---|---|
| Applicable tube size | φ4, φ6, φ8, φ10, φ12 | R1/8, R1/4, Rc1/4, Rc1/2 | R1/8, R1/4, Rc3/8, Rc1/2 | |
| Media | Air | |||
| Maximum operating pressure | MPa [psi] | 0.9 MPa [131 psi] | ||
| Operating vacuum pressure | kPa [inHg] | −100 kPa [−29.54 inHg] | ||
| Operating temperature range | °C [°F] | 0~60°C [32~140°F] | ||
| Recommended tube | Nylon tube, urethane tube | |||
| Allowable rotating speed | r.p.m. | 1500 | 1200 | 1200, 1000, 1200, 990 |
| Color of release ring | Black | |||
| Sales unit | 1 pc. | |||
