KOGANEI CORPORATION

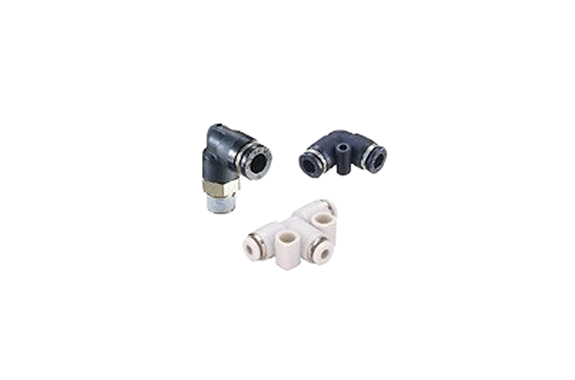

Koganei Quick Fittings Standard Type
Manufacturer: KOGANEI CORPORATION
Features
A wide selection of 53 types and 640 variations, in all shapes and sizes, allows detailed support ranging from compact to medium and large.
Simple and quick assembly for speedy connections.
Compatibility between nylon and urethane tubes, sealed thread portions, and other features boosts ease of use.
Specifications
| Item | Details |
|---|---|
| Media | Air |
| Maximum operating pressure | 0.9MPa [131 psi] |
| Operating vacuum pressure | −100 kPa [−29.54 in.Hg] |
| Operating temperature range | 0〜60°C [32〜140°F] |
| Recommended tube | Nylon tube, urethane tube |
| Sales unit | 1 pack (10 pcs.) [For φ16 (0.630in.), 1 pack (5 pcs.)] |
