KOGANEI CORPORATION

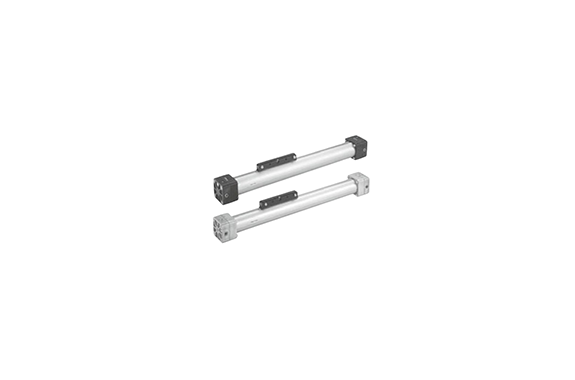

Koganei Rodless Cylinders
Manufacturer: KOGANEI CORPORATION
Features
A long stroke of up to 5000 mm [196.8 in.] can be manufactured. It can also be used to make driving equipment, which could not be done by air cylinders in the past.
The magnet for the sensor switch is standard equipment. By installing a sensor switch, the piston position can be easily detected, and the space for the limit switch mounting and design man-hours can be greatly reduced.
Upside down installation mountings have been put into a series. By installing the piston yoke facing downwards, the seal band is protected, thereby increasing its durability.
Specifications
| Bore size | ⌀ 63 [2.480 in.] | ⌀ 80 [3.150 in.] |
|---|---|---|
| Media | Air | |
| Operation type | Double acting type | |
| Operating pressure range MPa [psi.] | 0.1～0.8 [15～116] | 0.1～0.8 [15～116] |
| Proof pressure MPa [psi.] | 1.2 [174] | 1.2 [174] |
| Operating temperature range °C [°F] | 0～60 [32～140] | |
| Operating speed range mm/s [in./sec.] | 100～1500 [3.9～59.1] | |
| Cushion | Both sides (Variable cushion) | |
| Lubrication | Required | |
| Port size | Rc3/8 | Rc1/2 |
| Maximum stroke | 5000 | |
| Stroke tolerance mm [in.] | 1000 or less +2 [+0.079] / 0 | 1000 or less +2 [+0.079] / 0 |
| 1001～3000 +3 [+0.118] / 0 | 1001～3000 +3 [+0.118] / 0 | |
| 3001～5000 +4 [+0.157] / 0 | 3001～5000 +4 [+0.157] / 0 | |
