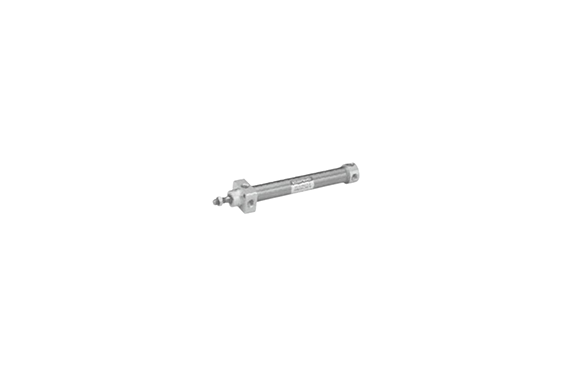

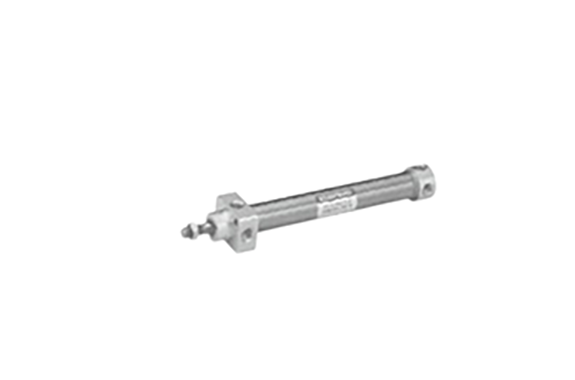

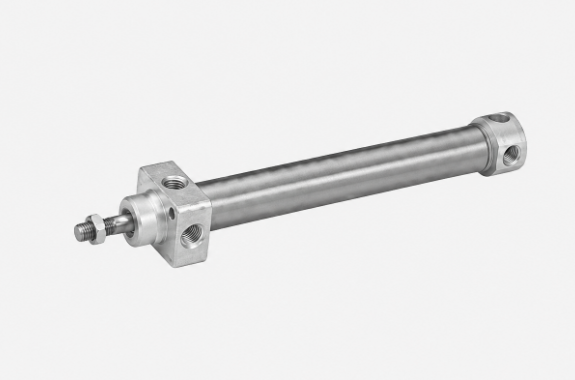

Koganei Slim Block Cylinders With Variable Cushion
Manufacturer: KOGANEI CORPORATION
Product name: Slim Block Cylinders
Feature
- The two piston seals are the durable PPY type. This prevents inner air leakage, and achieves smooth operation from low-speed to high-speed ranges.
- Magnets as standard equipment across the entire series allow sensor switches to be installed anytime after the cylinder has been installed.
- A centering location on the rod cover improves mounting precision. Moreover, the mounting nut’s improved thread precision means that holding the cylinder body in place by hand is sufficient for mounting nut tightening operations. Mounting in hard-to-reach places is easy.
Specifications
| Item | Bore size mm [in.] | |||
|---|---|---|---|---|
| 16 [0.630] | 20, 25 [0.787, 0.984] | 32, 40 [1.260, 1.575] | ||
| Operation type | Double acting type | |||
| Media | Air | |||
| Mounting type | Side mount, Front mount | |||
| Operating pressure range MPa [psi.] | 0.15～0.9 [22～131] | 0.1～0.9 [15～131] | 0.1～0.9 [15～131] | |
| Proof pressure MPa [psi.] | 1.32 [191] | 1.32 [191] | 1.32 [191] | |
| Operating temperature range °C [°F] | 0～70 [32～158] | |||
| Operating speed range mm/s [in./sec.] | 30～1000 [1.2～39.4] | 30～700 [1.2～27.6] | 30～700 [1.2～27.6] | |
| Cushion stroke mm [in.] | 9 [0.35] | 20 [0.787] | 25 [0.984] | |
| Lubrication | Not required | |||
| Port size | Rc 1/8 | Rc 1/8 | Rc 1/4 | |
