KOGANEI CORPORATION

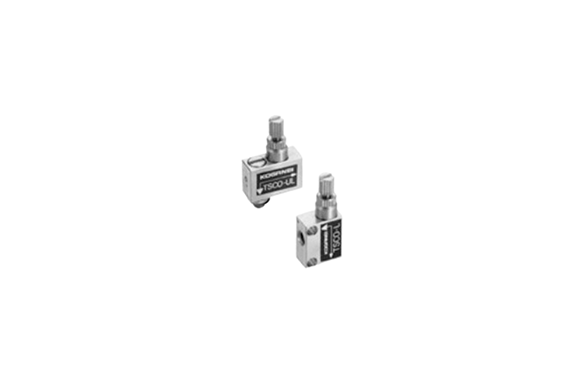

Koganei Speed Controllers TSCO Series M3 × 0.5
Manufacturer: KOGANEI CORPORATION
Features
These units offer precise speed control for M3 ported Pen Cylinders, ensuring optimal performance. In addition, their compact and lightweight design makes them easy to handle, providing both convenience and efficiency in use.
Specifications
| Item | Model | TSCO | TSCO-L | TSCO-UC | TSCO-UL |
|---|---|---|---|---|---|
| Piping type | Controlled flow P | Female thread | Universal male thread | Female thread | |
| Port size | M3 X 0.5 | M3 X 0.5 | M3 X 0.5 | M3 X 0.5 | |
| Media | Air | ||||
| Operating pressure range | MPa [psi] | 0~0.7 MPa [0~102 psi] | 0~0.7 MPa [0~102 psi] | 0~0.7 MPa [0~102 psi] | 0~0.7 MPa [0~102 psi] |
| Proof pressure | MPa [psi] | 1.03 MPa [149 psi] | 1.03 MPa [149 psi] | 1.03 MPa [149 psi] | 1.03 MPa [149 psi] |
| Cracking pressure | MPa [psi] | 0.05 MPa [7.3 psi] | 0.05 MPa [7.3 psi] | 0.05 MPa [7.3 psi] | 0.05 MPa [7.3 psi] |
| Operating temperature range | °C [°F] | 5~60°C [41~140°F] | 5~60°C [41~140°F] | 5~60°C [41~140°F] | 5~60°C [41~140°F] |
| Mass | g [oz.] | 5 [0.18] | 4 [0.14] | 6 [0.21] | 6 [0.21] |
