KOGANEI CORPORATION

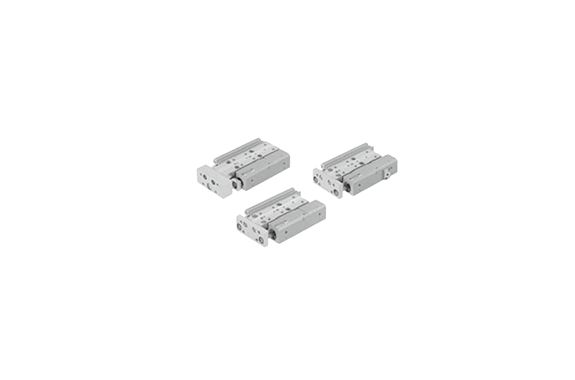

Koganei Z Sliders Cylinders With Buffers
Manufacturer: KOGANEI CORPORATION
Features
Built-in spring absorbs workpiece impact shocks at the extended stroke end.
The spring return force can be adjusted in 4 levels.
Specifications
| Item | Model | ZSG6 | ZSG10 | ZSG16 | ZSG20 | ZSG25 |
|---|---|---|---|---|---|---|
| Bore size | mm [in.] | 6 [0.236] | 10 [0.394] | 16 [0.630] | 20 [0.787] | 25 [0.984] |
| Operating speed range | mm/s [in./sec.] | 50～500 [2.0～19.7] (At horizontal: 50～300 [2.0～11.8]) | ||||
| Buffer stroke | mm [in.] | 10 [0.394] MAX. | ||||
