Kyoto Tool Co.

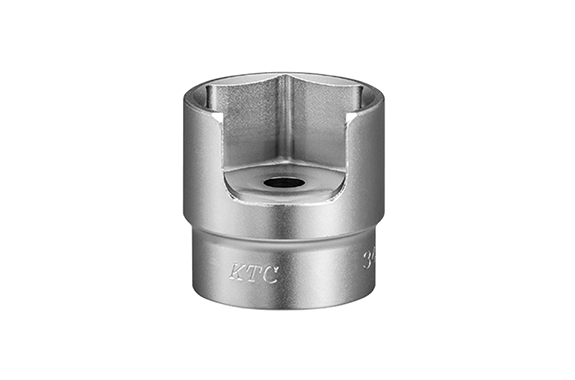

KTC ABX6-34 12.7sq. Elbow Connector Socket
Manufacturer: KTC.
Model: ABX6-34
Features
- This is a tool for tightening the connector for the check valve used in Isuzu trucks.
- It can also be used to tighten and loosen elbow connectors (L-shaped pipe fittings) used in general maintenance machines.
- ABX6-12~22 (12, 14, 17, 19, 22mm) with a insertion angle of 9.5sq. is also set.

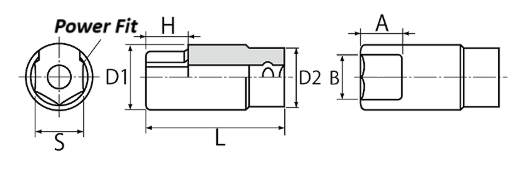

Specifications
| No. | sq. | S | D1 | D2 | H | L | A | B | ▼g |
|---|---|---|---|---|---|---|---|---|---|
| ABX6-34 | 12.7 | 34 | 45 | 41 | 20 | 44 | 19.5 | 27 | 300 |
