Kyoto Tool Co.

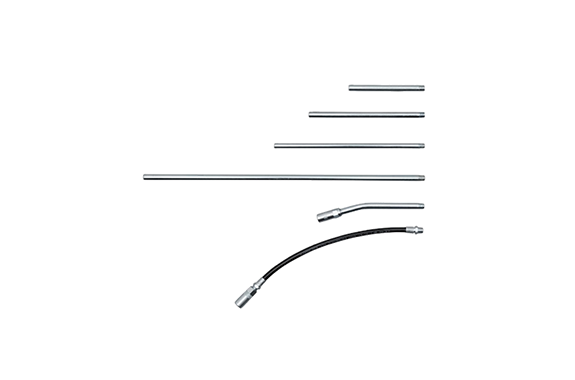

KTC G-1000NH, G-120NS, G-180NS, G-250NS, G-450NS, G-190NC&G-330NH Grease Gun Nozzle

Manufacturer: KTC.
Model: G-1000NH, G-120NS, G-180NS, G-250NS, G-450NS, G-190NC&G-330NH.
Features
- Replacement nozzle for grease guns (G-80 ~ 500) and (CG-400).
- t can also be used for cordless grease guns (JTAE911). (Using the nozzle conversion adapter included with the cordless grease gun)
- Straight nozzle, vent nozzle, and hydro hose nozzle that can be bent freely are set, and can be replaced according to the application.
- Pin type and button head type nipples are not applicable.
- ・Nozzle size R1/8
Specifications

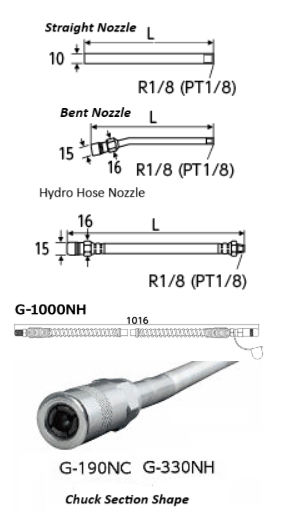

| No. | Name | chuck | L | ▼g |
|---|---|---|---|---|
| G-120NS | Straight nozzle | without | 115 | 25 |
| G-180NS | Straight nozzle | without | 180 | 50 |
| G-250NS | Straight nozzle | without | 250 | 70 |
| G-450NS | Straight nozzle | without | 450 | 103 |
| G-190NC | Vent nozzle | And | 172 | 90 |
| G-330NH | Hydro Hose Nozzle | And | 337 | 140 |
| G-1000NH | Grease gun nozzle | 1,016 | 160 |
