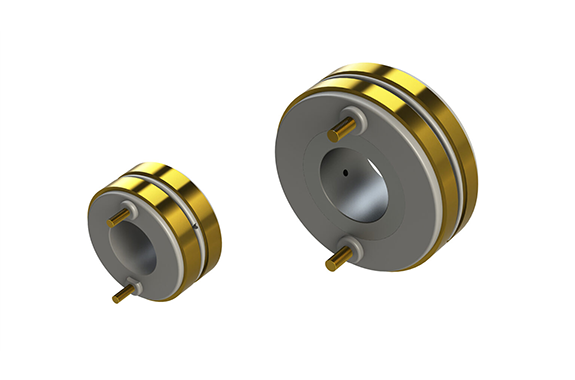

Kyoei Electric 2-pole Molded Slip Ring
Manufacturer: Kyoei Electric Co., Ltd.
Model: 2-pole
Applications:
A 2-pole slip ring allows for power supply to single-phase motors and other applications with minimal configuration.
Power supply for single-phase heaters
Power supply for sensors and LSI circuits

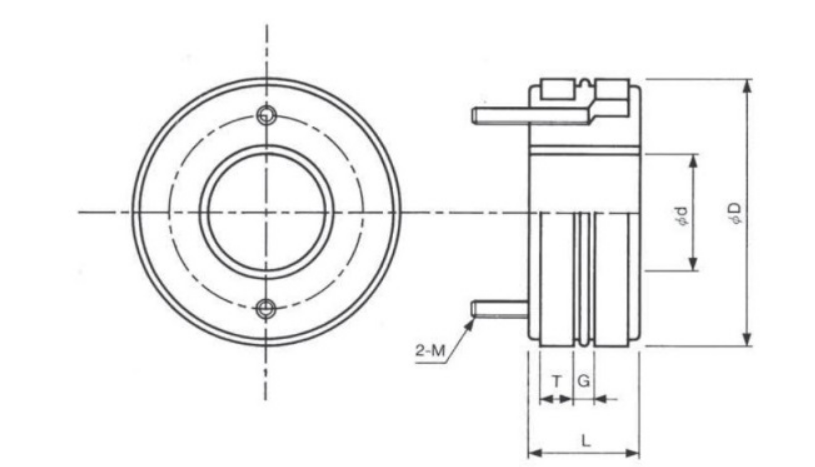

Dimensional drawing
| Model | d | D | L | T | G | M | Current (A) | Ring Material |
|---|---|---|---|---|---|---|---|---|
| SR-402 | 15 | 40 | 36 | 10 | 10 | φ2.3 | 15 | BS |
| SR-642 | 26 | 64 | 30 | 10 | 4 | M4 | 15 | BC |
| SR-752 | 35 | 75 | 38 | 12 | 7 | M5 | 20 | BC |
| SR-902 | 30 | 90 | 37 | 12 | 7 | M5 | 20 | BC |
| SR-1252 | 50 | 125 | 46 | 12 | 10 | M8 | 60 | BC |
Specifications
| Voltage | AC200V DC100V |
|---|---|
| Allowable current | 15-60A |
| Insulation resistance | 50MΩ (500V) or more |
| Dielectric strength | 2500V 1min |
| Number of poles | 2 |
| Direction of rotation | CW-CCW |
| Permissible rotational speed | 2000rpm |
| heat resistance | Max 180℃ |
| molding material | Premix resin |
