Japan, LOBTEX
LOBTEX DS-SS STLOCK Short Socket
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: DS-SS : DS8SS, DS10SS, DS12SS, DS13SS, DS14SS, DS17SS, DS19SS, DS21SS, DS22SS, DS24SS

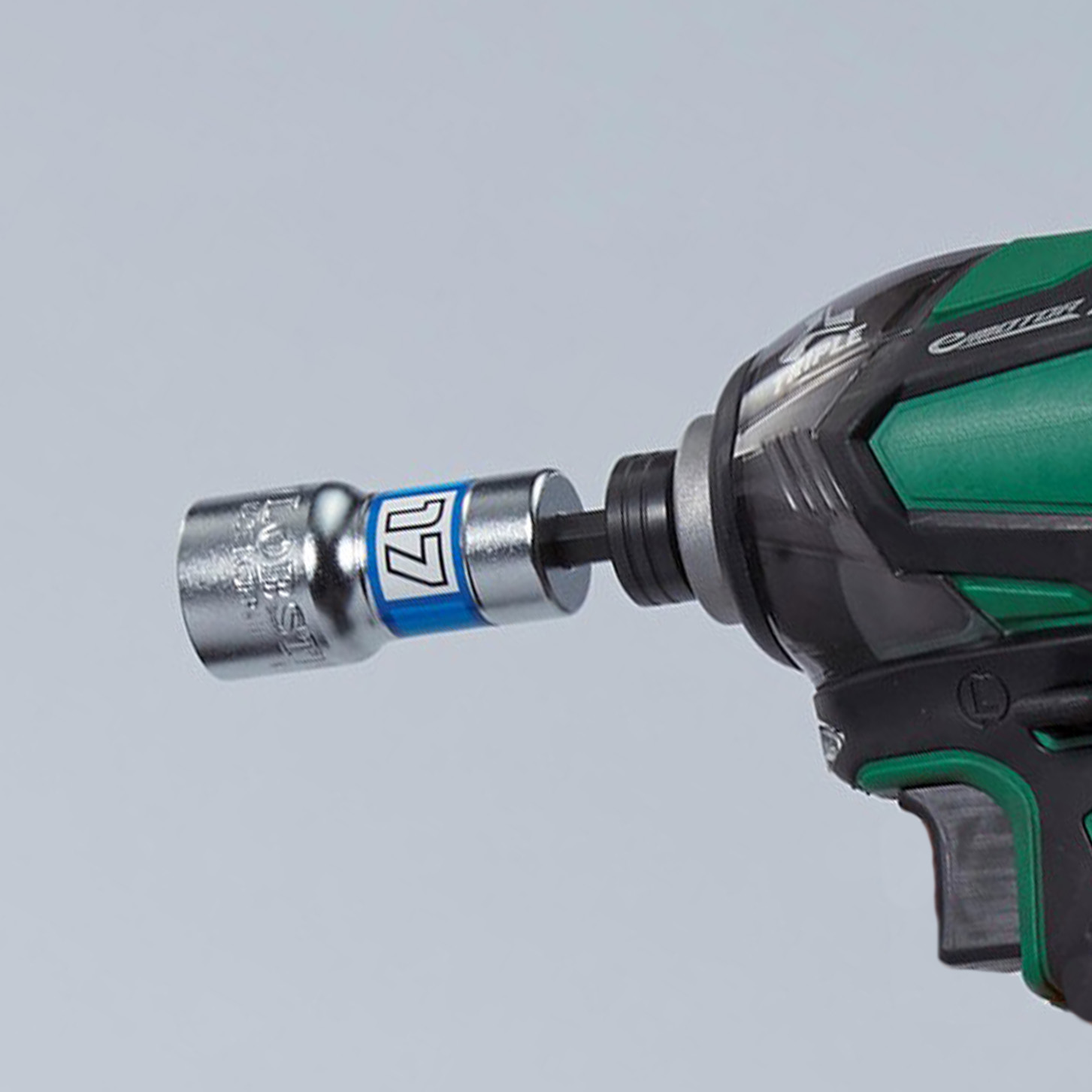

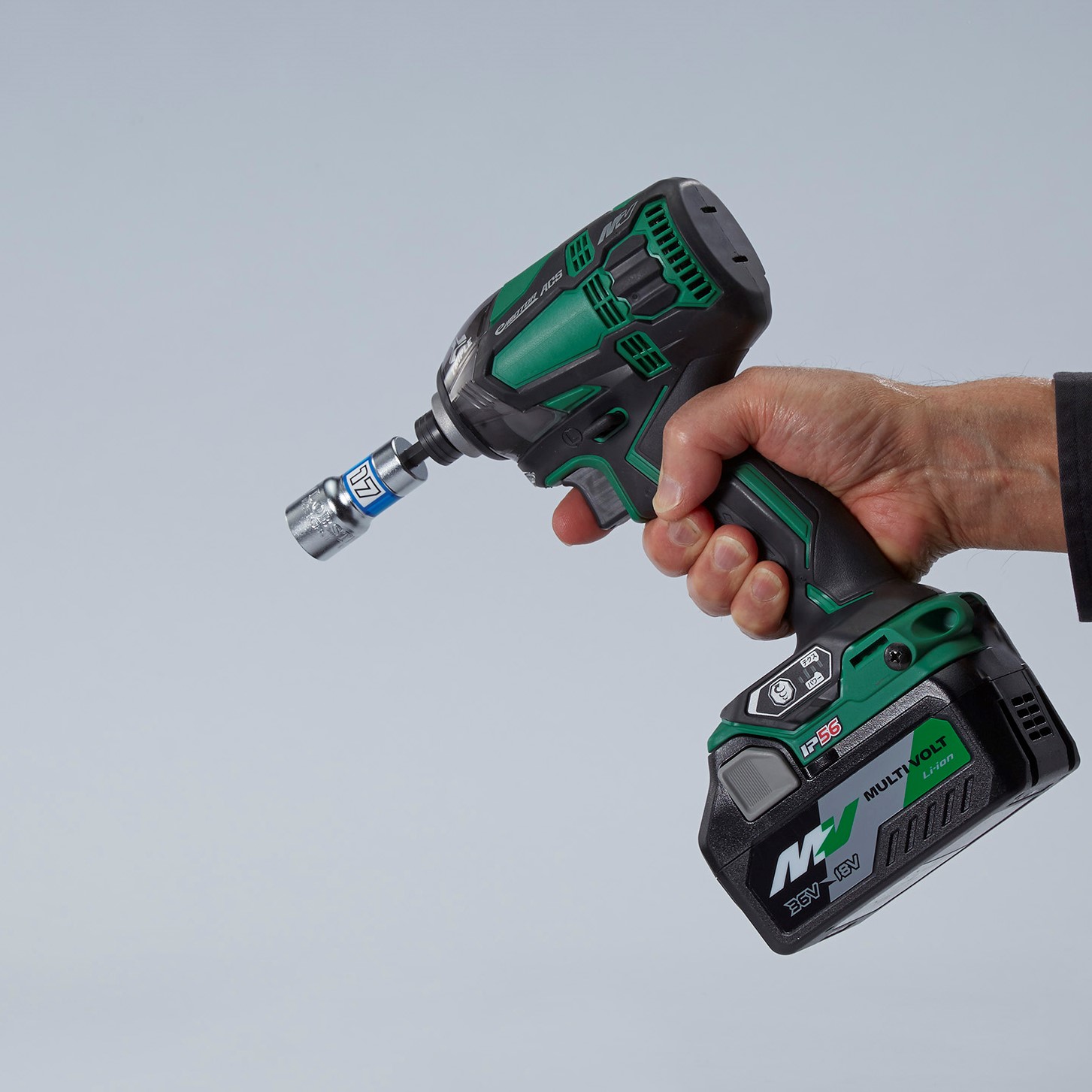

Compatible with 18 V impact screwdriver
Short socket
Compatible models：18V impact screwdriver.
The compact shape is suitable for work in limited space.
Torsion/Break resistance and high torque transmission efficiency are obtained when the hexagon shaft is press-fit into the hexagon hole of the socket.
Features
●Point
●Opening shape

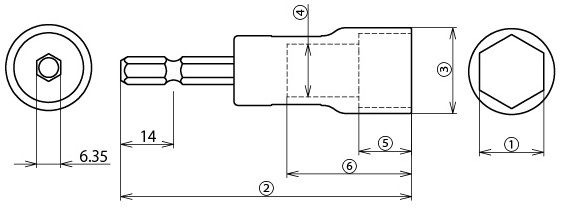

Specifications
| Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | size6 | Retail/User prices | Remark |
|---|---|---|---|---|---|---|---|---|---|
| DS8SS | 45g | 8mm | 77mm | 12.7mm | 6mm | 12mm | 35mm | open price | opening shape：hexagon |
| DS10SS | 38g | 10mm | 77mm | 14.2mm | 8mm | 12mm | 35mm | open price | opening shape：hexagon |
| DS12SS | 55g | 12mm | 77mm | 16.7mm | 10mm | 14mm | 35mm | open price | opening shape：hexagon |
| DS13SS | 58g | 13mm | 77mm | 17.7mm | 11mm | 14mm | 35mm | open price | opening shape：hexagon |
| DS14SS | 62g | 14mm | 77mm | 19mm | 12mm | 14mm | 34mm | open price | opening shape：hexagon |
| DS17SS | 71g | 17mm | 77mm | 22.7mm | 14mm | 14mm | 33mm | open price | opening shape：hexagon |
| DS19SS | 80g | 19mm | 77mm | 24.7mm | 16mm | 14mm | 33mm | open price | opening shape：hexagon |
| DS21SS | 90g | 21mm | 77mm | 27.2mm | 18mm | 14mm | 33mm | open price | opening shape：hexagon |
| DS22SS | 92g | 22mm | 77mm | 28.2mm | 18mm | 14mm | 33mm | open price | opening shape：hexagon |
| DS24SS | 109g | 24mm | 77mm | 30.5mm | 19mm | 14mm | 33mm | open price | opening shape：hexagon |
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
