Japan, LOBTEX
LOBTEX DSH STLOCK Socket For Hexagon Setter
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: DSH : DSH635, DSH7, DSH8, DSH95, DSH10, DSH12, DSH13, DSH14
Compatible with 18 V impact screwdriver
Socket for hexagon setter
・Compatible models：18V impact screwdriver.
・For fitting and removing hexagon type (hexagon head) screws/bolts
・The joint for electric tool has double grooves (for 9.5 mm and 14 mm), enabling mounting on various types of electric drills.
Features
●Point
●Opening shape

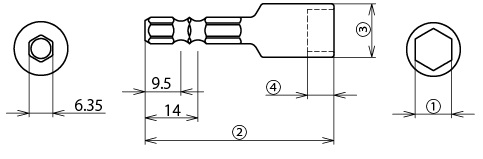

Specifications
| Model No. | (Product) weight | size1 | size2 | size3 | size4 | Retail/User prices | Remark |
|---|---|---|---|---|---|---|---|
| DSH635 | 17g | 6.35mm（1/4in） | 50mm | 10mm | 5mm | open price | opening shape：hexagon |
| DSH7 | 19g | 7mm | 50mm | 11mm | 5mm | open price | opening shape：hexagon |
| DSH8 | 20g | 8mm | 50mm | 12mm | 6mm | open price | opening shape：hexagon |
| DSH95 | 31g | 9.5mm（3/8in） | 50mm | 14.2mm | 7mm | open price | opening shape：hexagon |
| DSH10 | 31g | 10mm | 50mm | 14.2mm | 7mm | open price | opening shape：hexagon |
| DSH12 | 39g | 12mm | 50mm | 17mm | 8mm | open price | opening shape：hexagon |
| DSH13 | 42g | 13mm | 50mm | 18mm | 8mm | open price | opening shape：hexagon |
| DSH14 | 46g | 14mm | 50mm | 19mm | 9mm | open price | opening shape：hexagon |
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
