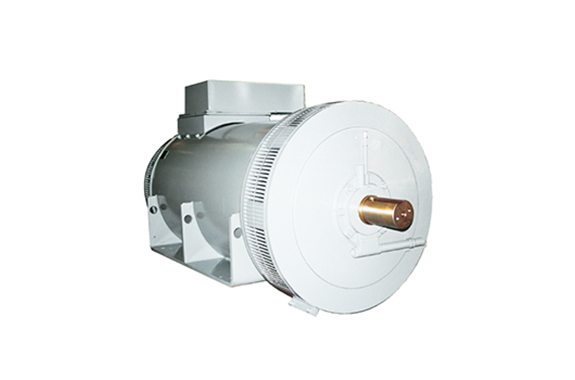

Meidensha Engine Generator Small And Medium Capacity Synchronous Generators
Manufacturer: Meidensha Corporation
Features
Compact size and light weight
High reliability
High performance
Easy maintenance and inspection
Low noise
Quick delivery
Applications
It works as the power supply for emergency, peak-shaving and continuous use (combined heat and power (CHP)) for buildings, hospitals, factories, etc. and contributes to all societies and all industries.
Specifications
| Item | Standard Specifications | Notes |
|---|---|---|
| Applicable standards | JEC‐2130(2000)、JEC‐2131(1985)、JEC‐1354(1998) | It is also compatible with overseas regulations besides the IEC. |
| Type | Rotating magnetic field salient pole type, with a damper winding | |
| Protection degree | IP20 (protection type) | The IP22 (drip-proof protection type) can also be produced. |
| Cooling system | IC01 (free ventilation type) | |
| Rated output | 150kVA to 5000kVA | |
| Number of poles | 4-pole | |
| Rated voltage | 200/200V、400/400V、3300V、6600V | The 210 V type, the 415 V type, etc. can be also produced. |
| Frequency | 50Hz、60Hz | |
| Power factor | 0.8(lagging) | |
| Number of phases and number of wires | Three-phase three-wire system | The 3-phase 4-wire type can also be produced. |
| Type of rating | Continuous | |
| Thermal class | Class F | |
| Excitation system | Brushless excitation system | |
| Bearing system | Grease sealing system | It is a partial grease supply system. |
| Color of the coated shaft | Munsell symbol N5 |
