MITSUHASHI CORPORATION

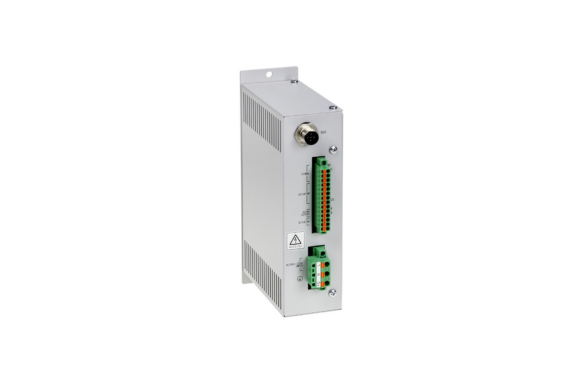

MITSUHASHI PCM-D40-NL DC Motor Driver
Manufacturer: MITSUHASHI CORPORATION
Model: PCM-D40-NL
This is a DC motor driver. It is used in combination with a G-series controller to control the drive unit of the Q-series.

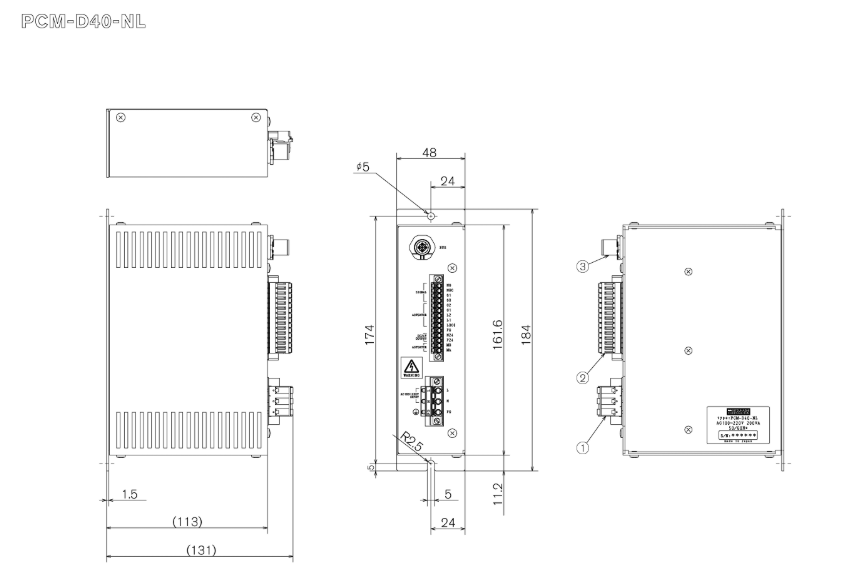

Drawing
① Power input terminal
② Drive unit connection terminal
③ Connector for peripheral device connection
Features
- It can drive all Q-series roll guides and actuators under 2.5A.
- It is primarily used in combination with the PEM-200 controller.
Specification
| power supply | AC 100-220V 50/60Hz |
|---|---|
| Power consumption | 200VA or less |
| mass | Approximately 520g |
| Usage environment | Temperature: 0-40°C, Humidity: 80% Rh or less (non-condensing) |
| Compatible controllers | PEM-200, PEM-3000 |
| Compatible drive unit | Q-series drive units equipped with motors with a rated current of 2.5A or less , all PG-type roll guides , all MR-type roll guides , and actuators such as PD-400, PD-610, PD-620, PD-710, and PD-650. |
