MITSUHASHI CORPORATION

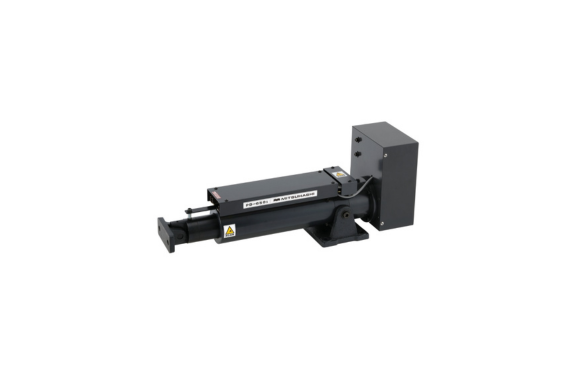

MITSUHASHI PD-650S Actuator For Vertical Transport
Manufacturer: MITSUHASHI CORPORATION
Model: PD-650S
This actuator is used to control the meandering of the web unwinding and winding sections. It is used in combination with the Q-series control panel and detector. It can be used in the direction of gravity and is for controlling meandering during longitudinal web transport.

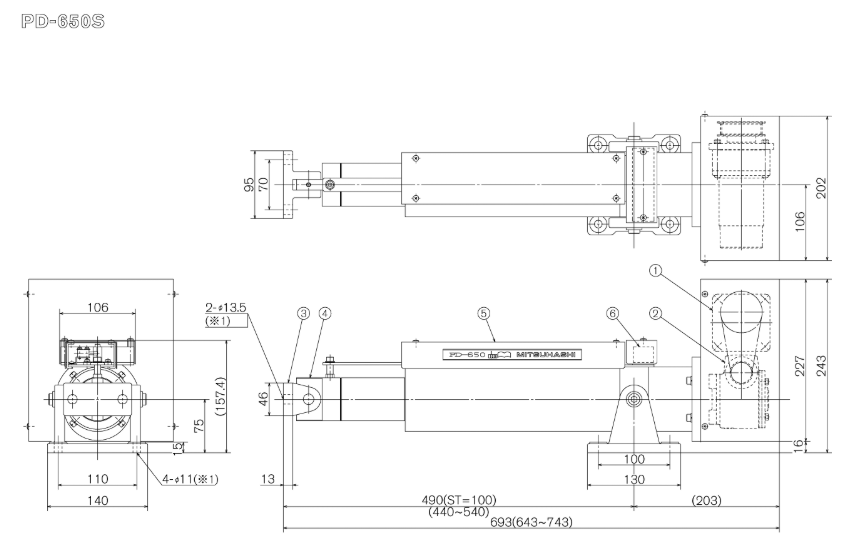

Drawing
① DC geared motor
② Worm gear reducer
③ Connector
④ Slide rod
⑤ Switch unit
⑤ Terminal block
*1: Mounting holes
Features
- Long lifespan and easy maintenance and inspection.
Because it uses a ball screw in the drive mechanism, there are virtually no wear parts, resulting in a long lifespan and easy maintenance. - Equipped with a microswitch for center position detection.
By pressing the center stop switch on the control panel, you can pre-set the actuator to the center position.
Specification
| Allowable thrust | 980N (100kgf) |
|---|---|
| Allowable mass | 100kg |
| stroke | 180mm |
| Drive speed | 2.8mm/s |
| DC motor | DC24V 2.4A |
| mass | 27kg |
