MIYAIRI VALVE MFG.CO., Ltd.

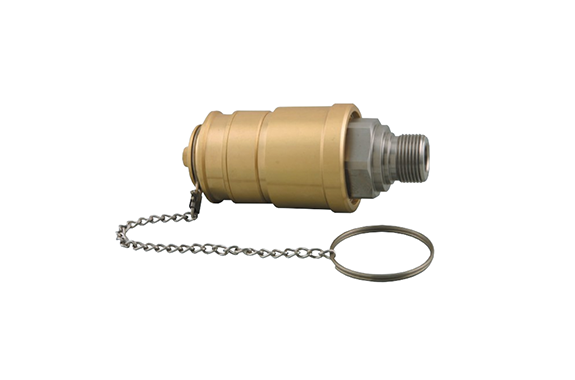

MIYAIRI LPF-20M Male Coupling
Manufacturer: MIYAIRI VALVE MFG.CO., Ltd.
Model: LPF-20M
Specification Table
| Feature | Specification |
|---|---|
| Category | Valve & Equipment for Bulk System |
| Product Code | LPF-20M |
| Size | 20A, 25A × 20A |
| Main Fluid | LPG |
| Connection | G3/4 × 20A Coupling, G1 × 20A Coupling |
| Applicable Regulation | Certified Product |
| Design Pressure | 2.1 MPa |
| Design Temperature | −10°C to 70°C |
| Hydrostatic Testing Pressure | 3.5 MPa |
| Leakage Testing Pressure | 2.1 MPa |
| Weight (20A G3/4) | 1.5 kg |
| Weight (20A G1) | 1.6 kg |
Material Table
| Part | Material |
|---|---|
| Body | C3604B |
| Disk | C3604B |
| Adapter | SUS304 |
| Cap | C3604B |
Note:
“G1 coupling is made to order.“
