Mizumoto Machine Mfg. Co.

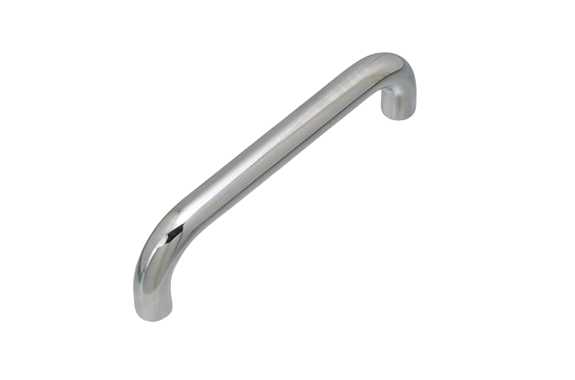

Mizumoto HOB Series Single-Sided Door Handle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: HOB Series
Features
- This handle has a mirror finish with a beautiful stainless steel texture.
- For door handles or handrails, etc.
Specifications
| Item No. | D | L | P | H | Type | Weight(g) |
|---|---|---|---|---|---|---|
| HOB-16-150 | 16 | 166 | 150 | 45 | M-5 | 90 |
| HOB-16-200 | 16 | 216 | 200 | 45 | M-5 | 110 |
| HOB-16-250 | 16 | 266 | 250 | 45 | M-5 | 128 |
| HOB-19-250 | 19 | 219 | 200 | 49 | M-6 | 175 |
| HOB-19-300 | 19 | 319 | 300 | 49 | M-6 | 200 |
| HOB-22-250 | 22 | 272 | 250 | 57 | M-6 | 250 |
| HOB-22-300 | 22 | 322 | 300 | 57 | M-6 | 290 |
| HOB-25-250 | 25 | 325 | 250 | 68 | M-6 | 430 |
| HOB-25-500 | 25 | 525 | 500 | 68 | M-6 | 535 |
| HOB-32-400 | 32 | 432 | 400 | 78 | M-8 | 640 |
| HOB-32-600 | 32 | 632 | 600 | 78 | M-8 | 945 |
*All have a mirror finish

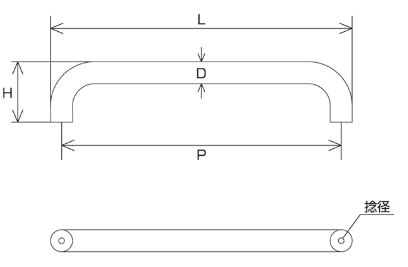

Dimensions (mm)
