Mizumoto Machine Mfg. Co.

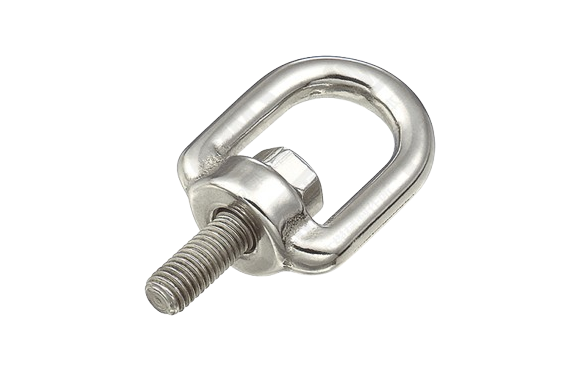

Mizumoto MSB Series Swivel Bolt
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MSB Series
Features
- This is a bolt with a rotating eye.
- It is installed in the open part of the internal thread, and a wire, rope, or hook is hooked on the eye part.
- The hex bolt does not come out of the swivel.
Specifications
| Product Number | D | L | W | H | B | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| MSB-5 | 5 | 30 | 13 | 13.5 | 13 | M-5 | 18 | 30 | 0.29 |
| MSB-6 | 6 | 33 | 15 | 14.5 | 14 | M-6 | 29 | 50 | 0.49 |
| MSB-8 | 7 | 45 | 20 | 22 | 19 | M-8 | 67 | 80 | 0.78 |
| MSB-10 | 10 | 57 | 24 | 26.5 | 24 | M-10 | 134 | 150 | 1.47 |
| MSB-12 | 11.5 | 65 | 25 | 26 | 24 | M-12 | 206 | 220 | 2.16 |
*Do not use it as a hanging bracket.
*It is dangerous to rotate the screw in the direction of loosening under load.
*Please tighten the thread cut hole with a wrench. The swivel rotates when the screw is tightened.

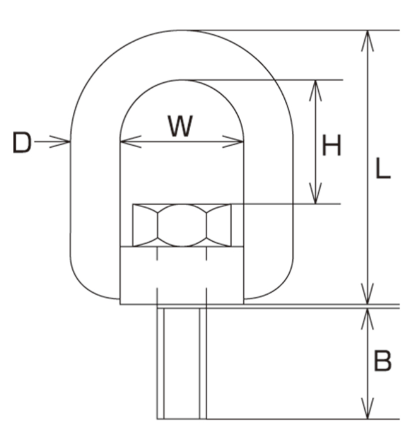

Dimensions (mm)
