Mizumoto Machine Mfg. Co.

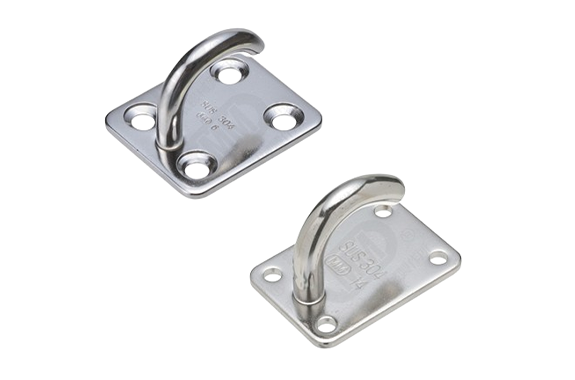

Mizumoto OIP Series Open Eye Plate
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: OIP Series
Features
- Attach it to a post or wall.
Specifications
| Product Number | D | A1 | A2 | B1 | B2 | H | h | d | S | T | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OIP-5 | 5 | 30 | 18 | 34 | 22 | 19.5 | 12 | 4.2 | 10 | 2.5 | 21 | 10 | 0.10 |
| OIP-6 | 6 | 34 | 20 | 40 | 25 | 25.5 | 17 | 5.2 | 14 | 2.5 | 30 | 15 | 0.15 |
| OIP-8 | 8 | 39 | 25 | 50 | 35 | 32 | 21 | 5.2 | 16 | 3 | 59 | 20 | 0.20 |
| OIP-9 | 9 | 42 | 27 | 58 | 43 | 37 | 24 | 5.2 | 18 | 4 | 95 | 25 | 0.25 |
| OIP-12 | 12 | 54 | 35 | 75 | 56 | 47.8 | 31 | 5.8 | 24 | 4.8 | 203 | 35 | 0.34 |
| OIP-14 | 14 | 60 | 40 | 85 | 65 | 57 | 38 | 8 | 28 | 5 | 290 | 40 | 0.39 |
| OIP-16 | 16 | 65 | 40 | 95 | 70 | 65 | 43 | 10 | 32 | 6 | 421 | 65 | 0.64 |
*OIP-14 and 16 are “counterfeit type”.

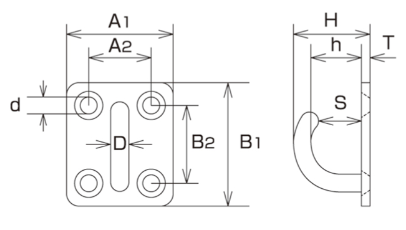

Dimensions (mm)
