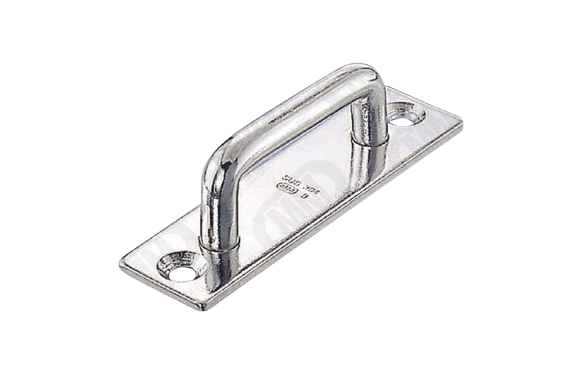

Mizumoto PDL Series Long Eye
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PDL Series
Features
- It can be installed on narrow surfaces.
- Please use the screws on the countersunk head.
- It can be used with a wide belt.
- It is installed on walls, floors, pillars, etc., and is used as a terminal fitting for a belt-shaped flat object such as rubber or fiber.
Specifications
| Model | D | A | B1 | B2 | H | h | W | d | T | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PDL-4 | 4 | 12 | 36 | 28 | 16 | 10 | 12 | 3.2 | 2 | 8 | 7 | 0.07 |
| PDL-5 | 5 | 15 | 45 | 35 | 20 | 13 | 14 | 3.6 | 2 | 16 | 15 | 0.15 |
| PDL-6 | 6 | 18 | 60 | 48 | 22 | 14 | 24 | 4.2 | 2 | 28 | 20 | 0.20 |
| PDL-7 | 7 | 21 | 70 | 56.5 | 25 | 14 | 34 | 5.2 | 2 | 40 | 25 | 0.25 |
| PDL-8 | 8 | 24 | 80 | 65 | 25 | 14 | 42 | 5.8 | 3 | 63 | 30 | 0.29 |
| PDL-9 | 9 | 27 | 100 | 83 | 27 | 16 | 53 | 6.2 | 3 | 101 | 50 | 0.49 |
| PDL-10 | 10 | 30 | 120 | 91 | 37 | 20 | 60 | 6.2 | 4 | 170 | 100 | 0.98 |

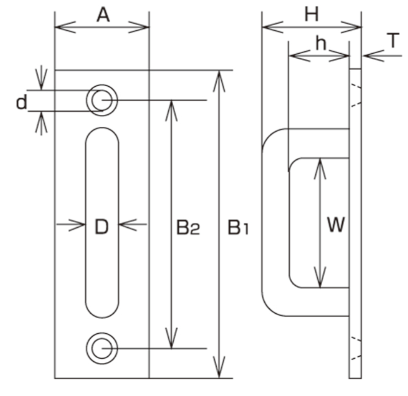

Dimensions (mm)
