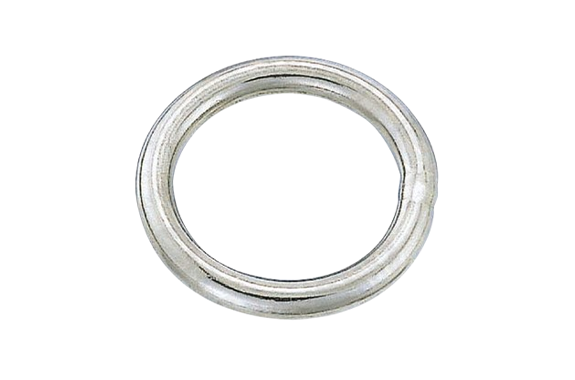

Mizumoto R Series Circle Link

Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: R Series

Features

Available in a wide range of sizes to suit various applications.
Welded connection ensures high strength and reliability.
Suitable as tip fittings for ropes and similar uses.

Specifications

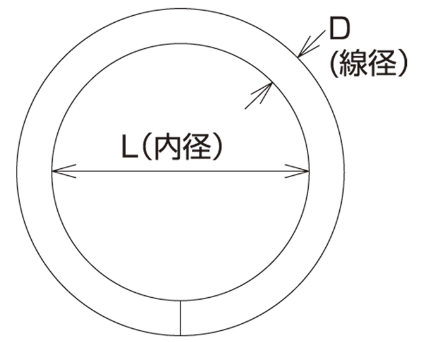

Part No.	Weight (g)	Reference Working Load		Price (JPY / pc)		Qty
		(kgf)	(kN)	Incl. Tax	Excl. Tax
R-1-10	0.2	1.0	0.01	132	120	50
R-1-15	0.3	1.0	0.01	176	160	50
R-1-20	0.4	0.5	0.005	187	170	50
R-1.5-10	0.5	2.0	0.02	154	140	50
R-1.5-15	0.85	1.5	0.015	187	170	50
R-1.5-20	1.0	1.0	0.01	209	190	50
R-2-20	1.5	2.0	0.02	220	200	20
R-2-25	2.0	2.0	0.02	231	210	20
R-2-30	2.4	2.0	0.02	253	230	20
R-2-35	2.9	1.5	0.015	264	240	20
R-2-40	3.2	1.0	0.01	286	260	20
R-2-45	3.5	1.0	0.01	297	270	20
R-2-50	3.9	0.75	0.007	308	280	20
R-2.5-20	2.5	5.0	0.05	231	210	20
R-2.5-25	3.5	4.0	0.04	242	220	20
R-2.5-30	4.0	4.0	0.04	259	235	20
R-2.5-40	6	3.0	0.03	297	270	20
R-2.5-50	7	3.0	0.03	330	300	20
R-3-20	4	25	0.25	242	220	20
R-3-25	5	20	0.20	253	230	20
R-3-30	6	15	0.15	264	240	20
R-3-35	7	12	0.12	297	270	20
R-3-40	8	10	0.10	308	280	20
R-3-50	9	8	0.08	385	350	20
R-4-20	8	70	0.69	286	260	20
R-4-25	9	50	0.49	297	270	20
R-4-30	10	40	0.39	308	280	20
R-4-35	12	25	0.25	341	310	20
R-4-40	14	20	0.20	385	350	20
R-4-45	15	18	0.18	440	400	20
R-4-50	17	15	0.15	462	420	20
R-4-55	18	13	0.13	517	470	20
R-4-60	20	12	0.12	539	490	20

Part No.	Weight (g)	Reference Working Load		Price (JPY / pc)		Qty
		(kgf)	(kN)	Incl. Tax	Excl. Tax
R-5-20	13	150	1.47	385	350	20
R-5-25	15	100	0.98	418	380	20
R-5-30	17	80	0.78	440	400	20
R-5-35	19	60	0.59	451	410	20
R-5-40	22	50	0.49	517	470	20
R-5-45	24	30	0.29	539	490	20
R-5-50	26	25	0.25	594	540	20
R-5-55	29	19	0.19	649	590	20
R-5-60	31	15	0.15	715	650	20
R-5-70	36	13	0.13	770	700	20
R-6-25	22	160	1.57	407	370	20
R-6-30	25	140	1.37	418	380	20
R-6-35	29	100	0.98	440	400	20
R-6-40	31	80	0.78	462	420	20
R-6-45	36	62	0.61	495	450	20
R-6-50	41	50	0.49	550	500	20
R-6-60	45	35	0.34	616	560	20
R-6-70	54	26	0.26	693	630	20
R-6-80	65	15	0.15	770	700	20
R-7-45	51	100	0.98	594	540	20
R-8-35	54	220	2.16	759	690	20
R-8-40	61	200	1.96	770	700	20
R-8-45	66	120	1.18	792	720	20
R-8-50	73	109	1.07	847	770	20
R-8-60	86	75	0.74	990	900	20
R-9-50	92	180	1.76	1,210	1,100	10
R-9-60	109	110	1.08	1,320	1,200	10
R-10-50	117	200	1.96	1,650	1,500	10
R-10-60	138	155	1.52	1,760	1,600	10
R-11-60	170	250	2.45	1,980	1,800	10
R-12-60	205	300	2.94	3,080	2,800	10
R-13-50	203	600	5.88	3,410	3,100	10
R-13-60	248	500	4.90	3,630	3,300	10
R-13-100	371	300	2.94	4,400	4,000	5
R-16-70	446	1000	9.80	6,380	5,800	5
R-16-100	589	720	7.06	7,480	6,800	5
R-19-150	1200	1250	12.25	16,720	15,200	5
R-22-175	1870	1250	12.25	23,320	21,200	5
R-25-200	2750	1250	12.25	34,320	31,200	5
R-28-250	4260	1250	12.25	44,880	40,800	5
R-32-250	5650	2000	19.60	118,080	107,300	5

*Please also inquire about wire diameters of 32mm or more, SUS316, and SUS316L.
*The working load varies significantly depending on the inner diameter even if it is the same wire diameter. Please contact us for details.
