Mizumoto Machine Mfg. Co.

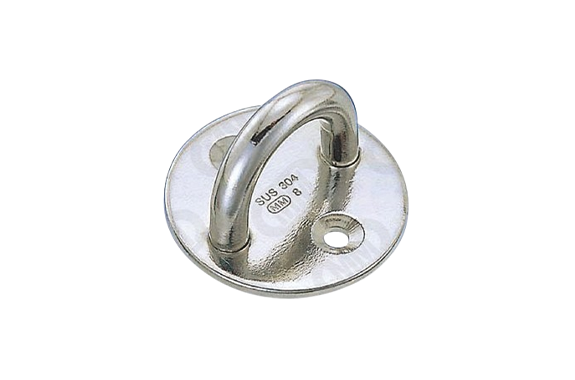

Mizumoto RI Series Round Eye
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RI Series
Features
- The seat part is circular.
- Please use the screw on the countersunk head.
- It is a type that stops in two places.
- It is installed on walls, floors, pillars, etc., and used as terminal hardware such as chains, wires, ropes, etc.
Specifications
| Model | D | A1 | A2 | H | h | W | d | T | Weight (kg) | Reference Load (kef) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RI-5 | 5 | 33 | 19 | 20 | 12.5 | 14 | 4.2 | 2.5 | 21 | 15 | 0.15 |
| RI-6 | 6 | 40 | 23 | 25.5 | 17 | 19 | 5.2 | 2.5 | 34 | 20 | 0.20 |
| RI-8 | 8 | 50 | 29 | 32 | 21 | 23 | 5.2 | 3 | 69 | 30 | 0.29 |

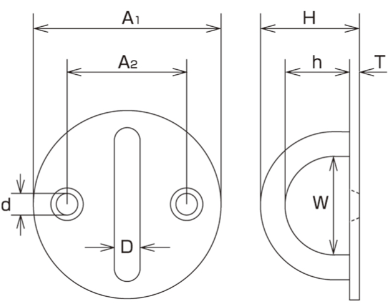

Dimensions (mm)
