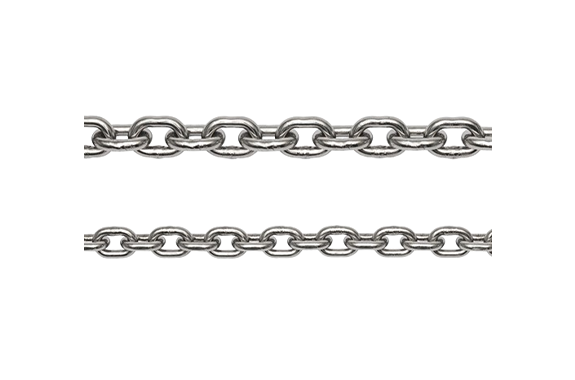

Mizumoto S Series Short Chain
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: S Series
Features
- It is used very widely due to its excellent corrosion and oxidation resistance. JISF2106 is a chain equivalent.
Specifications
| Short Chain (JIS F2106 Equivalent) | ||||||||||
| Part No. | Wire Dia. d (mm) | Inner Length P (mm) | Inner Width W (mm) | Weight per meter (kg/m) | Chain with Load Test | Chain without Load Test | ||||
| Working Load (WLL) | Proof Load (PL) | Working Load (Reference) | ||||||||
| (kgf) | (kN) | (kgf) | (kN) | (kgf) | (kN) | |||||
| 6-S | 6 | 18 | 9 | 0.8 | 500 | 4.90 | 1,000 | 9.80 | 350 | 3.43 |
| 8-S | 8 | 24 | 12 | 1.4 | 900 | 8.82 | 1,800 | 17.64 | 600 | 5.88 |
| 9-S | 9 | 27 | 14 | 1.8 | 1,100 | 10.78 | 2,200 | 21.56 | 800 | 7.84 |
| 10-S | 10 | 30 | 15 | 2.2 | 1,400 | 13.72 | 2,800 | 27.44 | 900 | 8.82 |
| 11-S | 11 | 33 | 17 | 2.7 | 1,600 | 15.68 | 3,200 | 31.36 | 1,000 | 9.80 |
| 12-S | 12 | 36 | 18 | 3.3 | 1,800 | 17.64 | 3,600 | 35.28 | 1,300 | 12.74 |
| 13-S | 13 | 39 | 20 | 3.7 | 2,000 | 19.60 | 4,000 | 39.20 | 1,500 | 14.70 |
| 16-S | 16 | 48 | 24 | 5.6 | 2,500 | 24.50 | 5,500 | 53.90 | 2,000 | 19.60 |
| 19-S | 19 | 57 | 29 | 7.8 | 3,000 | 29.40 | 7,500 | 73.50 | 2,500 | 24.50 |
| 22-S | 22 | 66 | 33 | 10.6 | 4,000 | 39.20 | 10,000 | 98.00 | 3,000 | 29.40 |
| 25-S | 25 | 75 | 38 | 13.6 | 7,250 | 71.05 | 14,500 | 142.10 | 5,000 | 49.00 |
*Material: Both stainless steel SUS304 and SUS316 are in stock.
(The standard product is SUS304, so please specify if you would like SUS316.)
*The fixed size is 30m per piece.

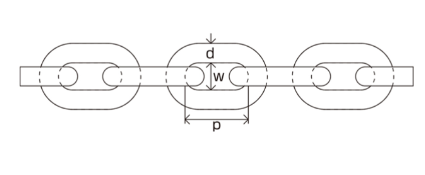

Dimensions (mm)
