Mizumoto Machine Mfg. Co.

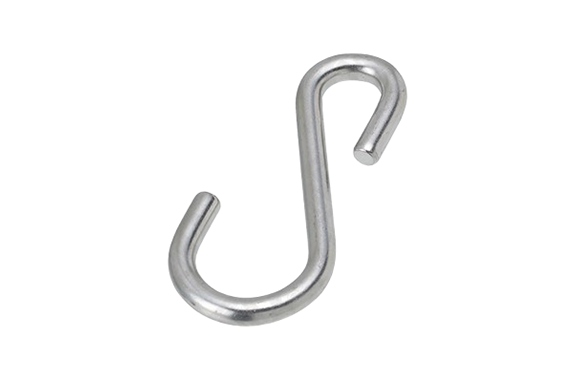

Mizumoto SAP Series S Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SAP Series
Features
- The hook is designed with a deep open mouth on one side.
- As terminal fittings such as loading and unloading ropes.
Specifications
| Product Number | D | L1 | L2 | W1 | W2 | S1 | S2 | Weight (g) | Reference Load (kgf) | Reference Load (kN) | Unit Price (¥/unit) | Body (mm) | Package Unit |
| SAP-5 | 6 | 65 | 55 | 10 | 20 | 4 | 15 | 20 | 20 | 0.20 | 495 | 450 | 20 |
| SAP-6 | 6 | 75 | 63 | 12 | 22 | 4.5 | 16 | 33 | 30 | 0.29 | 825 | 750 | 20 |
| SAP-8 | 8 | 100 | 84 | 15 | 30 | 6 | 22 | 76 | 50 | 0.49 | 1,210 | 1,100 | 20 |

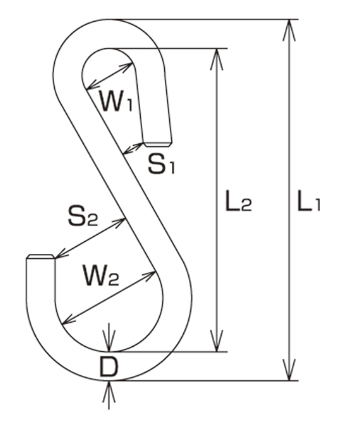

Dimensions (mm)
