Mizumoto Machine Mfg. Co.

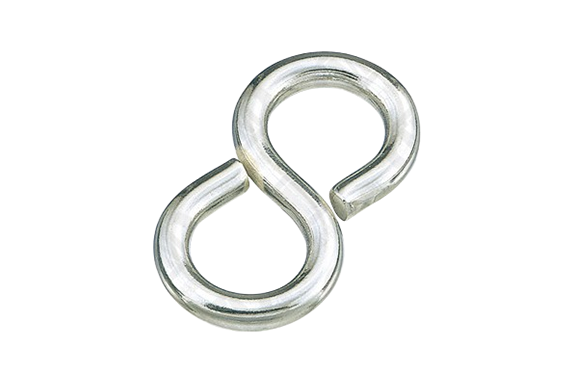

Mizumoto SJ Series Bean S Can
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SJ Series
Features
- It is characterized by the closed tip of the S can.
- It can be twisted to incorporate chains, ropes, etc.
- For joints such as chains, wires, ropes, etc.
Specifications
| Part No. | D | L1 | L2 | W1 | W2 | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | |||||||
| SJ-25 | 2.5 | 30 | 25 | 15 | 10 | 3 | 5 | 0.05 |
| SJ-30 | 3 | 30 | 24 | 16 | 10 | 4 | 7 | 0.07 |
| SJ-35 | 3.5 | 36 | 29 | 19 | 12 | 7 | 10 | 0.1 |
| SJ-40 | 4 | 42 | 34 | 22 | 14 | 10 | 15 | 0.15 |
| SJ-50 | 5 | 46 | 36 | 25 | 15 | 18 | 20 | 0.2 |

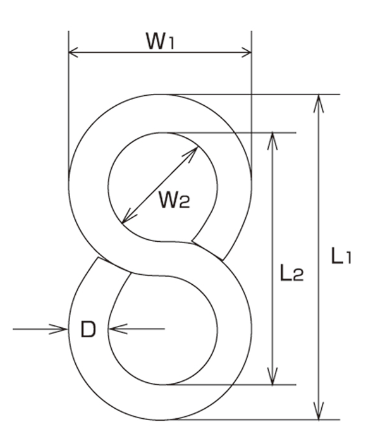

Dimensions (mm)
