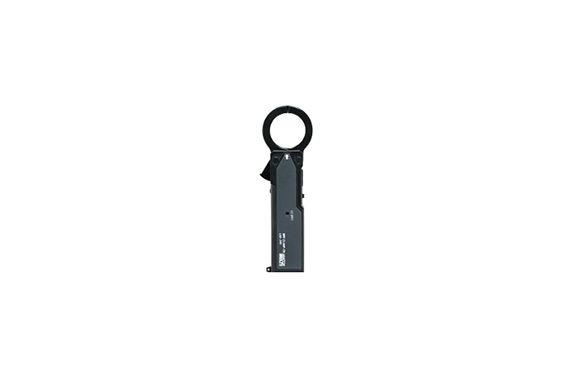

Multi LAD-240 Clamp-on DC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: LAD-240
Features
Compact, general-purpose DC current measurementCT
DC current measurement DC voltage output
Specifications
| Applicable current | DC 1A～200A |
|---|---|
| Example output | DC 200mV f.s |
| Wire diameter that can be installed | φ30mm |
| Measurement method | Average Detection System |
| accuracy | 1～150A ±2.0%rdg±0.5%f.s |
| 150A～200A ±2.5%rdg±0.5%f.s | |
| Supply voltage | 2 x Button Batteries LR-44 × |
| Input Resistance | 1MΩ or more |
| Withstand voltage | AC1000V/1 minute (between outer case outputs) |
| Insulation resistance | DC500V/100MΩ or higher (between external case and output) |
| Temperature and humidity | 0~40°C 80%RH or less, but no condensation |
| Output Leads | 1.2m with banana plug |
| Dimensions and weight | W44×H146×D20.5mm Approx. 120g |
