Multi Measuring Instruments Co.

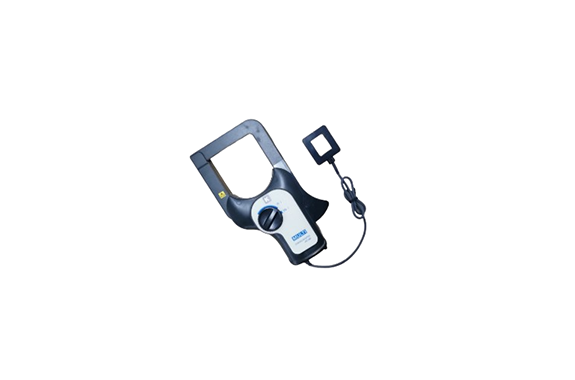

Multi LAD-800 Leak Adapter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: LAD-800
Features
● Two ratios of 10:1 and 100:1 can be selected
● Inner diameter of 80 mm can measure leakage current to high current of 1000 A
Specifications
| Maximum allowable current | AC1000A |
|---|---|
| CT Inner Diameter | 74×80mm |
| Current Change Ratio | 10：1 100：1 |
| power | unnecessary |
| Dimensions and Weight | W138×H225×D37mm approx. 500g |
| Secondary side clamp window dimensions | Outer Diameter W42×H47×D11mm Inner Diameter W19.5×H25mm |
| accessory | Soft Case |
