Multi Measuring Instruments Co.

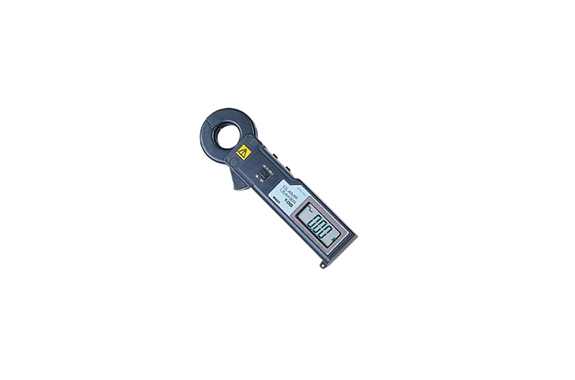

Multi M-100 Mini Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-100
Features
High-precision clamp-type leakage galvanometer with a window diameter of 18φ The effect of
the external magnetic field is less than 1/10 of the conventional
Specifications
| Measuring range | AC 200mA/20A |
|---|---|
| AC current accuracy | ±1.0％rdg±5dgt |
| CT Inner Diameter | φ18mm |
| Minimum resolution | 0.1mA |
| Other features | Data Hold |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W45×H140×D20mm Approx. 80g |
| accessory | Batteries, soft cases |
